POBCO Plastic Adjustable Ratchet Handles with Stud

Adjustable Ratchet Handles Stud Type

Plastic with Steel Components

Part Number (Inches)

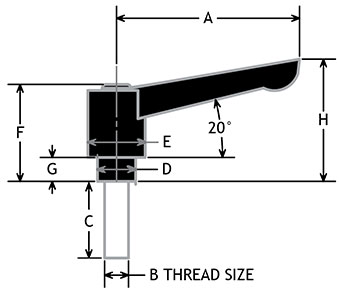

Black	A	B	C	D	E	F	G	H
3T20F33K	1.77	1/4-20	.78	.39	.57	.96	.16	1.38
3T32F33K	1.77	1/4-20	1.26
3T20F33K/SPH	1.77	1/4-20	.78	.39	.57	.96	.256	1.38*
5T20F34K			.78	.53	.72	1.22	.26	1.77
5T32F34K			1.26
5T50F34K			1.97
6T20F35K	3.07	3/8-16	.78	.63	.86	1.42	.31	2.17
6T40F35K			1.57
6T63F35K			2.48
8T32F36K	3.62	1/2-13	1.26	.75	.99	1.69	.43	2.56
8T40F36K			1.57
8T50F36K			1.97

*Tightens POBCO Plastic Cross Block #CBN-0808

Part Number (Metrics)
Black	A	B	C	D	E	F	G	H
6N20P33K	45	M6 x 1.0	20	10	14.4	24.5	4	35
6N32P33K			32
8N20P34K	63	M8 x 1.25	20	13.5	18.2	31	6.5	45
8N32P34K			32
8N50P34K			50
10N32P35K	78	M10 x 1.5	32	16	21.8	36	8	55
10N63P35K			63
12N40P36K	92	M12 x 1.75	40	19	25.2	43	11	65
12N63P36K			63

Plastic with Stainless Steel Components

Part Number (Inches)
Black	A	B	C	D	E	F	G	H
3T20S33K	1.77	1/4-20	.78	.39	.57	.96	.16	1.38
3T32S33K	1.77	1/4-20	1.26
3T20S33K/SPH	2.48	5/16-18	1.26	.39	.57	.96	.256	1.38
5T20S34K			.78	.53	.72	1.22	.26	1.77
5T32S34K			1.26
5T50S34K			1.97
6T20S35K	3.07	3/8-16	.78	.63	.86	1.42	.31	2.17
6T40P35K			1.57
6T63S35K			2.48
8T32S36K	3.62	1/2-13	1.26	.75	.99	1.69	.43	2.56
8T40S36K			1.57
8T50S36K			1.97

Part Number (Metrics)
Black	A	B	C	D	E	F	G	H
6N20S33K	45	M6 x 1.0	20	10	14.4	24.5	4	35
6N32S33K			32
8N20S34K	63	M8 x 1.25	20	13.5	18.2	31	6.5	45
8N32S34K			32
8N50S34K			50
10N32S35K	78	M10 x 1.5	32	16	21.8	36	8	55
10N63S35K			63
12N40S36K	92	M12 x 1.75	40	19	25.2	43	11	65
12N63S36K			63

Specifications:

Handle: Fiber reinforced technopolymer plastic with metal insert. Threaded insert, screw and spring: Steel-backened or 303 Stainless

Information:

The insert is connected to the handle via serrations which can easily disengaged. Pulling the handle, disengages the serrations, allowing it to be swivelled to the ideal clamping position. On releasing the handle the serrations automatically re-engage.
