POBCO Adjustable Ratchet Handles - Confined Space

Plastic with Steel Components

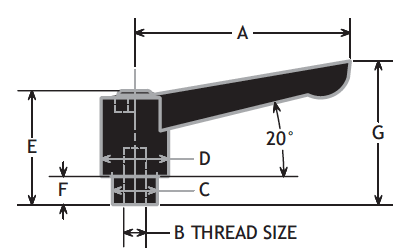

POBCO Adjustable Ratchet Handles - Confined Space Adjustable Ratchet Handle - Dimensional Illustration

Part Number

l1

d1Inch

d3

d4

h1

h2

h3

h4

t min

A/F

Black

Orange

3TF33K 3TF33O 1.77 1/4-20 .39 .57 .96 .16 1.38 .14 .31 .12
5TF34K 5TF34O 2.48 5/16-18 .53 .72 1.22 .26 1.77 .16 .39 .16
6TF35K 6TF35O 3.07 3/8-16 .63 .86 1.42 .31 2.17 .16 .55 .16
8TF36K 8TF36O 3.62 1/2-13 .75 .99 1.69 .43 2.56 .16 .57 .20



Part Number

l1

d1Metric

d3

d4

h1

h2

h3

h4

t min

A/F

Black

Orange

6NF33K 6NF33O 45 M6 x 1.0 10 14.4 24.5 4 35 3.5 8 3.1
8NF34K 8NF34O 63 M8 x 1.25 13.5 18.2 31 6.5 45 4 10 4.1
10MF35K 10MF35O 78 810 16 21.8 36 8 55 4 14 4.1
12NF36K 12NF36O 92 M12 x 1.75 19 25.2 43 11 65 4 17 5.1



Plastic with Stainless Steel Components

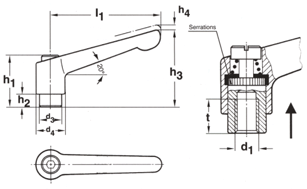

POBCO Adjustable Ratchet Handles - Confined Space Adjustable Ratchet Handle - Dimensional Illustration

Part Number

l1

d1Inch

d3

d4

h1

h2

h3

h4

t min

Black

Orange

3TS33K 3TS33O 1.77 1/4-20 .39 .57 .96 .16 1.38 .14 .31
5TS34K 5TS34O 2.48 5/16-18 .53 .72 1.22 .26 1.77 .16 .39
6TS35K 6TS35O 3.07 3/8-16 .63 .86 1.42 .31 2.17 .16 .55
8TS36K 8TS36O 3.62 1/2-13 .75 .99 1.69 .43 2.56 .16 .57



Part Number

l1

d1Metric

d3

d4

h1

h2

h3

h4

t min

Black

Orange

6NS33K 6NS33O 45 M6 x 1.0 10 14.4 24.5 4 35 3.5 8
8NS34K 8NS34O 63 M8 x 1.25 13.5 18.2 31 6.5 45 4 10
10MS35K 10MS35O 78 810 16 21.8 36 8 55 4 14
12NS36K 12NS36O 92 M12 x 1.75 19 25.2 43 11 65 4 17



Specifications:

Handle: Fiber reinforced technopolymer plastic with metal insert
Threaded insert, screw and spring: Stainless Steel
European Standard No. 1.4305 (American Standard 303 series)
Spring is European Standard 1.4310
Special colors, bores, and threads are available up request.

Information:

All such handles have proven to be ideal whenever parts have to be clamped in a confined space or in a partcilar handle position. the insert is connected to the handle via serrations which can easily be disengaged.

Pulling the handle, disengages the serrations, allowing it to be swivelled to the ideal clamping position. On releasing the handle the serrations automatically re-engage.
