POBCO Stainless Steel Leveling Mounts

Stainless Steel Leveling Mount

Specifications

Plated carbon steel. Hardened stud with ball end is machined from solid bar. Staliness steel type 303. Jam nut standard part of assembly.
All dimensions, except for thread dimensions have maximum +/- 0.5mm (.019o) tolerance.

Information

Leveling Mounts Swivel pads swivel 7-1/2o each side of the centerline to adjust to uneven surfaces and level machine tools, electronic racks, benches, etc. Large diameter pad design assures solid support.

Part Number

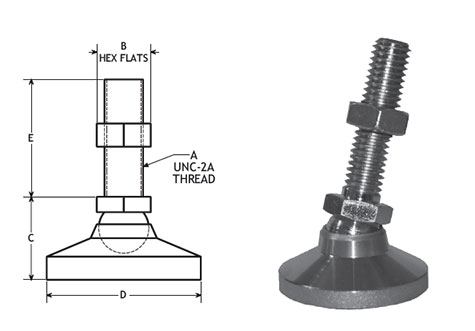

A B C D E
Load (kg)
Gold Iridite Steel Stainless Steel Stainless Steel
3T1250LIT 3T1250LTM 1/4-20 7/16 .70 1 1-1/4 1000
6T2LIT 6T2LTM 3/8-16 5/8 7/8 1-1/4 2 3750
8T2LIT 8T2LTM 1/2-13 3/4 1-1/8 1-7/8 2 5000
10T2LIT 10T2LTM 5/8-11 7/8 1-1/4 2-1/2 2 6000
11T2LIT 11T2LTM 3/4-10 11/16 1-1/2 3 2 7400
12T425LIT 12T8LTM 1/8 1-3/8 1-7/8 4 4-1/4 20000
1025545 12T8LTM 1/8 1-3/8 1-7/8 4 8 20000
- - - - - 13T2LTM 5/8-18 7/8 1-1/4 2-1/2 2 6000
