POBCO Mounts Anti-Vibration: Stainless Steel & Zinc Plated 2100/4100-Series
POBCO 2100/4100-Series mounts are ideal for use in food and chemical processing as well as other applications where vibration isolation is a concern. Pobco Stainless Steel and Zinc-Plated machine mounts have no hidden pockets where dirt and moisture can collect, making them ideal for applications where equipment is constantly being cleaned or where corrosion of steel leveling mounts may be a problem. All models are also available in zinc-plated steel for environments where corrosion is not a factor, yet require a high level of vibration isolation.
Applications
- Food & Beverage Packaging Equipment
- Chemical Processing Machinery
- Medical Manufacturing Equipment
- Assembly Equipment
- Semiconductor Processing Equipment
Advantages
- Corrosive resistant design
- Swivel up t +/-7.5o for added flexibility
- Availble in a wide variety of sizes for application
- High-grade materials; Non magnetic 304 grade stainless steel

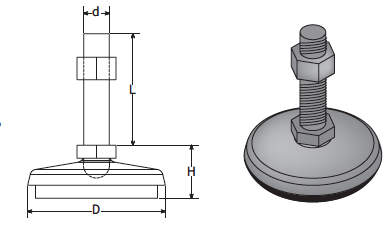

| POBCO STAINLESS PART NO. | POBCO ZINC PLATED PART NO. | BASE "D" | THREAD d | LENGTH L | BASE HT. H | LOAD lbs |
|---|---|---|---|---|---|---|
| PAV2152SS | PAV2152ZP | 2.64 | 1/2 | 2 | 15/16 | 250 |
| PAV2154SS | PAV2154ZP | 2.64 | 1/2 | 4 | 15/16 | 250 |
| PAV2156SS | PAV2156ZP | 2.64 | 1/2 | 6 | 15/16 | 250 |
| PAV2252SS | PAV2252ZP | 2.64 | 1/2 | 2 | 15/16 | 500 |
| PAV2254SS | PAV2254ZP | 2.64 | 1/2 | 4 | 15/16 | 500 |
| PAV2256SS | PAV2256ZP | 2.64 | 1/2 | 6 | 15/16 | 500 |
| PAV2264SS | PAV2264ZP | 2.64 | 5/8 | 4 | 1 | 500 |
| PAV2266SS | PAV2266ZP | 2.64 | 5/8 | 6 | 1 | 500 |
| PAV3254SS | PAV3254ZP | 3.86 | 1/2 | 4 | 1-3/8 | 2000 |
| PAV3256SS | PAV3256ZP | 3.86 | 1/2 | 6 | 1-3/8 | 2000 |
| PAV3264SS | PAV3264ZP | 3.86 | 5/8 | 4 | 1-7/16 | 2000 |
| PAV3266SS | PAV3266ZP | 3.86 | 5/8 | 6 | 1-7/16 | 2000 |
| PAV3268SS | PAV3268ZP | 3.86 | 5/8 | 8 | 1-7/16 | 2000 |
| PAV32610SS | PAV32610ZP | 3.86 | 5/8 | 10 | 1-7/16 | 2000 |
| PAV3274SS | PAV3274ZP | 3.86 | 3/4 | 4 | 1-9/16 | 2000 |
| PAV3276SS | PAV3276ZP | 3.86 | 3/4 | 6 | 1-9/16 | 2000 |
| PAV3278SS | PAV3278ZP | 3.86 | 3/4 | 8 | 1-9/16 | 2000 |
| PAV32710SS | PAV32710ZP | 3.86 | 3/4 | 10 | 1-9/16 | 2000 |
| PAV4164SS | PAV4164ZP | 5.50 | 5/8 | 4 | 2 | 3000 |
| PAV4166SS | PAV4166ZP | 5.50 | 5/8 | 6 | 2 | 3000 |
| PAV4174SS | PAV4174ZP | 5.50 | 3/4 | 4 | 2-1/8 | 3000 |
| PAV4176SS | PAV4176ZP | 5.50 | 3/4 | 6 | 2-1/8 | 3000 |
| PAV4178SS | PAV4178ZP | 5.50 | 3/4 | 8 | 2-1/8 | 3000 |
| PAV41710SS | PAV41710ZP | 5.50 | 3/4 | 10 | 2-1/8 | 3000 |
| PAV4264SS | PAV4264ZP | 5.50 | 5/8 | 4 | 2 | 4000 |
| PAV4266SS | PAV4266ZP | 5.50 | 5/8 | 6 | 2 | 4000 |
| PAV4274SS | PAV4274ZP | 5.50 | 3/4 | 4 | 2-1/8 | 4000 |
| PAV4276SS | PAV4276ZP | 5.50 | 3/4 | 6 | 2-1/8 | 4000 |
| PAV4278SS | PAV4278ZP | 5.50 | 3/4 | 8 | 2-1/8 | 4000 |
| PAV42710SS | PAV42710ZP | 5.50 | 3/4 | 10 | 2-1/8 | 4000 |
