POBCO 304 Stainless Steel Foot Mounts w/Anchoring Hole
Designed for food & beverage and chemical processing equipment.
Anchoring plates provide secure connection to floor.
Advantages:
- Rubber meets FDA 177.2600
- Operating temperature -20 to 100 °C
- Washdown applications
- Highly polished rounded base
- 5° swivel for good floor contact
- Rounded Polished base for fluid run-off

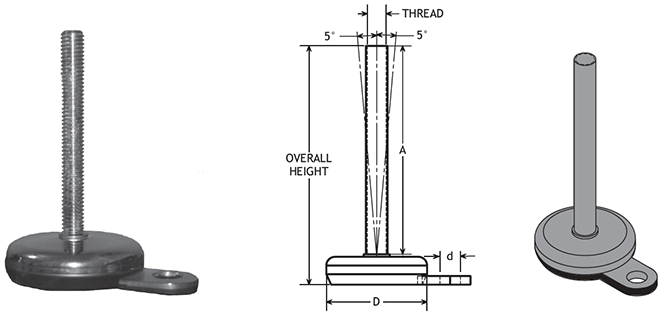

| POBCO PART NO. | Dia. D (in) | Thread M | Length A | Base Ht H | Overall Height | Hole d (in) | Center E (in) | Load (lbs) |
|---|
| M76124W1H | 2.95 |
1/2-13 | 4 | 0.87 | 4.87 | 0.63 | 2.05 | 1770 |
| M76126W1H | 2.95 | 1/2-13 | 6 | 0.87 | 6.87 | 0.63 | 2.05 | 1770 |
|---|
| M76128W1H | 2.95 | 1/2-13 | 8 | 0.87 | 8.87 | 0.63 | 2.05 | 1770 |
|---|
| M761210W1H | 2.95 | 1/2-13 | 10 | 0.87 | 10.87 | 0.63 | 2.05 | 1770 |
|---|
| M76584W1H | 2.95 |
5/8-11 | 4 | 0.87 | 4.87 | 0.63 | 2.05 | 1770 |
|---|
| M76586W1H | 2.95 | 5/8-11 | 6 | 0.87 | 6.87 | 0.63 | 2.05 | 1770 |
|---|
| M76588W1H | 2.95 | 5/8-11 | 8 | 0.87 | 8.87 | 0.63 | 2.05 | 1770 |
|---|
| M765810W1H | 2.95 | 5/8-11 | 10 | 0.87 | 10.87 | 0.63 | 2.05 | 1770 |
|---|
| M76344W1H | 2.95 | 3/4 -10 | 4 | 0.87 | 4.87 | 0.63 | 2.05 | 1770 |
|---|
| M76346W1H | 2.95 | 3/4 -10 | 6 | 0.87 | 6.87 | 0.63 | 2.05 | 1770 |
|---|
| M76348W1H | 2.95 | 3/4 -10 | 8 | 0.87 | 8.87 | 0.63 | 2.05 | 1770 |
|---|
| M763410W1H | 2.95 | 3/4 -10 | 10 | 0.87 | 10.87 | 0.63 | 2.05 | 1770 |
|---|
| M76784W1H | 2.95 | 3/4 -10 | 4 | 0.87 | 4.87 | 0.63 | 2.05 | 1770 |
|---|
| M76786W1H | 2.95 | 3/4 -10 | 6 | 0.87 | 6.87 | 0.63 | 2.05 | 1770 |
|---|
| M76788W1H | 2.95 | 3/4 -10 | 8 | 0.87 | 8.87 | 0.63 | 2.05 | 1770 |
|---|
| M767810W1H | 2.95 | 3/4 -10 | 10 | 0.87 | 10.87 | 0.63 | 2.05 | 1770 |
|---|
| M77124W2H | 2.95 | 1/2-13 | 4 | 0.87 | 4.87 | 0.63 | 2.05 | 1770 |
|---|
| M77126W2H | 2.95 | 1/2-13 | 6 | 0.87 | 6.87 | 0.63 | 2.05 | 1770 |
|---|
| M77128W2H | 2.95 | 1/2-13 | 8 | 0.87 | 8.87 | 0.63 | 2.05 | 1770 |
|---|
| M771210W2H | 2.95 | 1/2-13 | 10 | 0.87 | 10.87 | 0.63 | 2.05 | 1770 |
|---|
| M77584W2H | 2.95 | 5/8-11 | 4 | 0.87 | 4.87 | 0.63 | 2.05 | 1770 |
|---|
| M77586W2H | 2.95 | 5/8-11 | 6 | 0.87 | 6.87 | 0.63 | 2.05 | 1770 |
|---|
| M77588W2H | 2.95 | 5/8-11 | 8 | 0.87 | 8.87 | 0.63 | 2.05 | 1770 |
|---|
| M775810W2H | 2.95 | 5/8-11 | 10 | 0.87 | 10.87 | 0.63 | 2.05 | 1770 |
|---|
| M77344W2H | 2.95 | 3/4 -10 | 4 | 0.87 | 4.87 | 0.63 | 2.05 | 1770 |
|---|
| M77346W2H | 2.95 | 3/4 -10 | 6 | 0.87 | 6.87 | 0.63 | 2.05 | 1770 |
|---|
| M77348W2H | 2.95 | 3/4 -10 | 8 | 0.87 | 8.87 | 0.63 | 2.05 | 1770 |
|---|
| M773410W2H | 2.95 | 3/4 -10 | 10 | 0.87 | 10.87 | 0.63 | 2.05 | 1770 |
|---|
| M77784W2H | 2.95 |
7/8-9 | 4 | 0.87 | 4.87 | 0.63 | 2.05 | 1770 |
|---|
| M77786W2H | 2.95 | 7/8-9 | 6 | 0.87 | 6.87 | 0.63 | 2.05 | 1770 |
|---|
| M77788W2H | 2.95 | 7/8-9 | 8 | 0.87 | 8.87 | 0.63 | 2.05 | 1770 |
|---|
| M777810W2H | 2.95 | 7/8-9 | 10 | 0.87 | 10.87 | 0.63 | 2.05 | 1770 |
|---|
| M106124W1H | 3.94 | 1/2-13 | 4 | 1.26 | 5.26 | 0.63 | 2.64 | 2220 |
|---|
| M106126W1H | 3.94 | 1/2-13 | 6 | 1.26 | 7.26 | 0.63 | 2.64 | 2220 |
|---|
| M106128W1H | 3.94 | 1/2-13 | 8 | 1.26 | 9.26 | 0.63 | 2.64 | 2220 |
|---|
| M1061210W1H | 3.94 | 1/2-13 | 10 | 1.26 | 11.26 | 0.63 | 2.64 | 2220 |
|---|
| M106584W1H | 3.94 | 5/8-11 | 4 | 1.26 | 5.26 | 0.63 | 2.64 | 2220 |
|---|
| M106586W1H | 3.94 | 5/8-11 | 6 | 1.26 | 7.26 | 0.63 | 2.64 | 2220 |
|---|
| M106588W1H | 3.94 | 5/8-11 | 8 | 1.26 | 9.26 | 0.63 | 2.64 | 2220 |
|---|
| M1065810W1H | 3.94 | 5/8-11 | 10 | 1.26 | 11.26 | 0.63 | 2.64 | 2220 |
|---|
| M106344W1H | 3.94 |
3/4 -10 | 4 | 1.26 | 5.26 | 0.63 | 2.64 | 2220 |
|---|
| M106346W1H | 3.94 | 3/4 -10 | 6 | 1.26 | 7.26 | 0.63 | 2.64 | 2220 |
|---|
| M106348W1H | 3.94 | 3/4 -10 | 8 | 1.26 | 9.26 | 0.63 | 2.64 | 2220 |
|---|
| M1063410W1H | 3.94 | 3/4 -10 | 10 | 1.26 | 11.26 | 0.63 | 2.64 | 2220 |
|---|
| M106784W1H | 3.94 | 7/8-9 | 4 | 1.26 | 5.26 | 0.63 | 2.64 | 2220 |
|---|
| M106786W1H | 3.94 | 7/8-9 | 6 | 1.26 | 7.26 | 0.63 | 2.64 | 2220 |
|---|
| M106788W1H | 3.94 | 7/8-9 | 8 | 1.26 | 9.26 | 0.63 | 2.64 | 2220 |
|---|
| M1067810W1H | 3.94 | 7/8-9 | 10 | 126 | 11.26 | 0.63 | 2.64 | 2220 |
|---|
