POBCO Bearing and Roller Accessories

POBCO Hex Shaft adapters slide over the hex shaft to allow the inside diameter of the roller to rotate freely on the outside diameter of the adapter. POBCO spring-loaded rollers with hex shafts use these adapters. SS adapters have a 1/8" FT dimension.

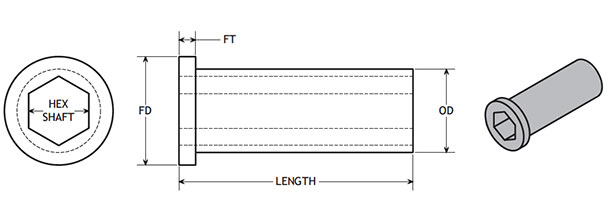

Hex Shaft AdapterPOBCO Hex Shaft Adapter

Metal Hex Shaft Adapters

Part Number
Hex Shaft OD LGTH FD FT Steel Stainless Steel
5/16 5/8 1-1/8 13/16 1/16 HSA-051018 HSA-051018-SS
7/16 5/8 1-1/8 13/16 1/16 HSA-071018 HSA-071018-SS
    1-3/4   1/8 HSA-071028 HSA-071028-SS
11/16 15/16 1-7/8 1-1/8 1/8 HSA-111530T HSA-111530-SS

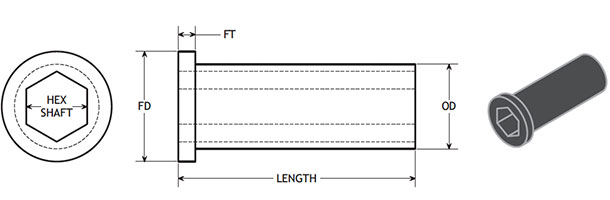

POBCO Hex Shaft Adapter

Plastic Hex Shaft Adapters

Part Number
Hex Shaft OD LGTH FD FT Nylon MD
5/16 1/2 7/8 3/4 1/16 HSA-050814-MD
7/16 5/8 1 7/8 3/32 HSA-071016-MD
5/8 7/8 1-1/4 1-1/8 3/32 HSA-101420-MD
11/16 7/8 1-1/4 1-1/8 3/32 HSA-111420-MD

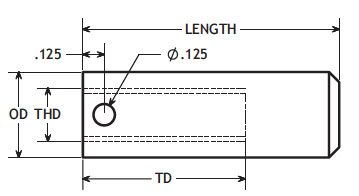

POBCO Stud Shafts thru-bolts to the frame allowing the use of blind-bore or other roll end bearings. *1/8 dia. hole for use with spanner wrench. Prevents stub shaft from spinning down during installation.

Stub Shafts

Part Number
THD TD OD LGTH Stainless Steel
5/16-18 3/4 1/2 1 BP-050816-SS
5/16-18 3/4 1/2 1-1/2 BP-050824-SS

Standard in 304 S.S.
Available in 316 S.S.
(Special Order - Matching stainless steel bolts are available.)

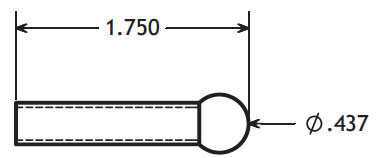

POBCO Stub Shaft



Part # BP08SSBALL

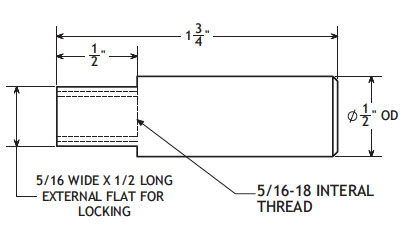

Stub Shaft

Part # BP0828FLAT
