POBCO Conveyor Rollers (Standard Selection)

Customize your roller with the POBCO Roller Specification Sheet. For commonly requested sizes and materials, please review the following selection. The roller sizes below can normally ship quickly from stock or with short lead times. Please inquire to confirm details.

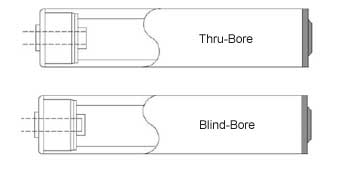

"RPMN" Series-Light Duty

POBCO's "RPMN" series rollers are constructed with 1.90" diameter, schedule 40 White PVC pipe, Molded Nylon Roll End Bearings, and bored to support a 1/2" diameter shaft, pin or stub shaft. These are an excellent, low cost, general purpose roller, often used on sorting equipment. Overall length of roller is made .25" shorter than the between frame dimension.

RPMN Series

Between Frame

Thru-Bore Part Number

Blind-Bore Part Number

3.50"

RPMNL3.25

RPMNL3.25BB

4.75"

RPMNL4.50

RPMNL4.50BB

7.75"

RPMNL7.50

RPMNL7.50BB

10.25"

RPMNL10.00

RPMNL10.00BB

13.00"

RPMNL12.75

RPMNL12.75BB

16.00"

RPMNL15.75

RPMNL15.75BB

18.00"

RPMNL17.75

RPMNL17.75BB

22.00"

RPMNL21.75

RPMNL21.75BB

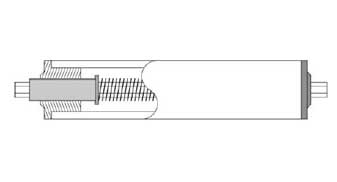

"RPU" Series-Medium Duty

POBCO's "RPU" series rollers are constructed with 1.90" diameter, schedule 40 White PVC pipe, UHMW Roll End Bearings, hex adapter, and 7/16" Hex spring loaded shaft. These rollers are suitable for many general purpose applications, and with the stainless shafting, they are highly corrosive resistant. POBCO assumes a total of 1/4" clearance total between frames dimension (1/8" on both sides) as well as 1-3/4"additional shaft length (7/8" on both sides) beyond distance between frames, unless otherwise stated by customer.

RPU Series

Between Frame

Steel Shaft Part Number

Stainless Steel Shaft Part Number

7.75"

RPUL7.50HEX

RPUL7.50HEXSS

10.25"

RPUL10.0HEX

RPUL10.0HEXSS

13.00"

RPUL12.75HEX

RPUL12.75HEXSS

16.00"

RPUL15.75HEX

RPUL15.75HEXSS

18.00"

RPUL17.75HEX

RPUL17.75HEXSS

22.00"

RPUL21.75HEX

RPUL21.75HEXSS

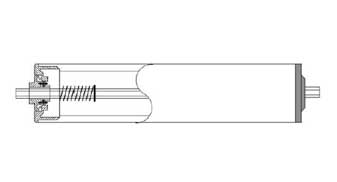

"RPD" Series-Light Duty Gravity Roller

POBCO's "RPD" series rollers are constructed with 1.90" diameter, schedule 40 White PVC pipe, Molded Delrin Roll End Bearings, and 7/16" Hex spring loaded shaft. These rollers allow for easy installation in the side frame with spring loaded shaft. These rollers are suitable for many light duty gravity conveyor applications, and with stainless shafting, they are highly corrosive resistant. POBCO assumes a total of 1/4" clearance total between frames dimension (1/8" on both sides) as well as 1-3/4"additional shaft length (7/8" on both sides) beyond distance between frames, unless otherwise stated by customer

RPD Series

Between Frame

Steel Shaft Part Number

Stainless Steel Shaft Part Number

7.75"

RPDL7.50HEX

RPDL7.50HEXSS

10.25"

RPDL10.0HEX

RPDL10.0HEXSS

13.00"

RPDL12.75HEX

RPDL12.75HEXSS

16.00"

RPDL15.75HEX

RPDL15.75HEXSS

18.00"

RPDL17.75HEX

RPDL17.75HEXSS

22.00"

RPDL21.75HEX

RPDL21.75HEXSS
