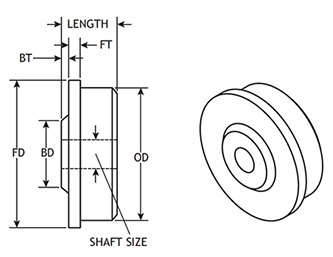

POBCO Light Duty Roll End Bearings
Available in POBCO-B Wood Bearing Material and a variety of POBCO Plastics including POBCO Ultra-D (UHMWPE), POBCO Plus (food grade fluid lube-filled UHMWPE) POBCO Nylons and POBCO PTFE (High Temp)
Some sizes listed below.
Many other sizes available, please inquire.
Light Duty Roll End Bearings |
|||||||||||||
| Tubing Outside Dia. FD | Tubing Gauge |
I.D. Metal Tubing O.D. | Length | FT | BT | BD | Part No.** | ||||||
| 1/2 | 20 18 |
.430 .402 |
1/2 | 1/8 | 1/16 | 3/8 | LD*-08T20 LD*-08T18 |
||||||
| 5/8 | 20 | 0.555 | 1/2 | 1/8 | 1/16 | 3/8 | LD*-10T20 | ||||||
| 0.706 | 1/2" EMT | 0.622 | 11/16 | 1/8 | 1/16 | 7/16 | LD*-08EMT | ||||||
| 3/4 | 22 20 18 16 |
.694 .680 .652 .620 |
11/16 | 1/8 | 1/16 | 1/2 | LD*-12T22 LD*-12T20 LD*-12T18 LD*-12T16 |
||||||
| .840 (1/2" Pipe) |
Sch. 40 Sch. 80 |
.622 .546 |
11/16 | 1/8 | 1/16 | 1/2 | LD*-08P40 LD*-08P80 |
||||||
| 7/8 | 20 18 16 |
.805 .777 .745 |
11/16 | 1/8 | 1/16 | 1/2 | LD*-14T20 LD*-14T18 LD*-14T16 |
||||||
| 0.922 | 3/4" EMT | 0.824 | 11/16 | 1/8 | 1/16 | 1/2 | LD*-12EMT | ||||||
| 1 | 20 18 17 16 |
.930 .902 .884 .870 |
11/16 | 1/8 | 1/16 | 5/8 | LD*-16T20 LD*-16T18 LD*-16T17 LD*-16T16 |
||||||
| 1.050 (3/4" Pipe) |
Sch. 40 Sch. 80 |
.824 .742 |
11/16 | 1/8 | 1/16 | 5/8 | LD*-12P40 LD*-12P80 |
||||||
| 1-1/8 | 17 16 |
1.009 .995 |
11/16 | 1/8 | 1/16 | 3/4 | LD*-18T17 LD*-18T16 |
||||||
| 1.163 | 1" EMT | 1.049 | 11/16 | 1/8 | 1/16 | 3/4 | LD*-16EMT | ||||||
| 1-1/4 | 20 18 16 |
1.430 1.152 1.120 |
3/4 | 1/8 | 1/16 | 7/8 | LD*-20T20 LD*-20T18 LD*-20T16 |
||||||
| 1-5/16 | 16 | 1.182 | 3/4 | 1/8 | 1/16 | 7/8 | LD*-21T16 | ||||||
| 1.315 (1" Pipe) |
Sch. 40 Sch. 80 |
1.049 .957 |
3/4 | 1/8 | 1/16 | 7/8 | LD*-16P40 LD*-16P80 |
||||||
| 1-3/8 | 18 16 |
1.277 1.245 |
3/4 | 1/8 | 1/16 | 7/8 | LD*-22T18 LD*-22T16 |
||||||
| 1-1/2 | 20 18 16 |
1.430 1.402 1.370 |
1 | 3/16 | 1/16 | 1 | LD*-24T20 LD*-24T18 LD*-24T16 |
||||||
| 1.510 | 1-1/4" EMT | 1.380 | 1 | 3/16 | 1/16 | 1 | LD*-20EMT | ||||||
| 1-5/8 | 20 18 16 |
1.555 1.527 1.495 |
1 | 3/16 | 1/16 | 1 | LD*-26T20 LD*-26T18 LD*-26T16 |
||||||
| 1.660 (1-1/4" Pipe) |
Sch. 40 Sch. 80 |
1.380 1.278 |
1 | 3/16 | 1/16 | 1 | LD*-20P40 LD*-20P80 |
||||||
| 1.740 | 1-1/2" EMT | 1.610 | 1 | 3/16 | 1/16 | 1 | LD*-24EMT | ||||||
| 1-3/4 | 20 18 16 |
1.680 1.652 1.620 |
1 | 3/16 | 1/16 | 11/8 | LD*-28T20 LD*-28T18 LD*-28T16 |
||||||
| 1-7/8 | 20 18 16 |
1.805 1.777 1.745 |
1 | 3/16 | 1/16 | 11/8 | LD*-30T20 LD*-30T18 LD*-30T16 |
||||||
| 1.900 | 16 | 1.770 | 1 | 3/16 | 1/16 | 11/8 | LD*-31T16 | ||||||
| Tubing Outside Dia. FD | Tubing Gauge |
I.D. Metal Tubing OD |
Length | FT | BT | BD | Part No.** | |||||||||
| 1.900 (1-1/2" Pipe) |
Sch. 40 Sch. 80 |
1.610 1.500 |
1 | 3/16 | 1/16 | 1-1/8 | LD*-24P40 LD*-24P80 |
|||||||||
| 2 | 20 18 16 |
1.930 1.902 1.870 |
1 | 3/16 | 1/16 | 1-1/8 | LD*-32T20 LD*-32T18 LD*-32T16 |
|||||||||
| 2.197 | 2" EMT | 2.067 | 1 | 3/16 | 1/16 | 1-1/4 | LD*-32EMT | |||||||||
| 2-1/4 | 20 18 16 |
2.180 2.152 2.120 |
1 | 3/16 | 1/16 | 1-1/4 | LD*-36T20 LD*-36T18 LD*-36T16 |
|||||||||
| 2.375 (2" Pipe) |
Sch. 10 Sch. 40 Sch. 80 |
2.157 2.067 1.939 |
1 | 3/16 | 1/16 | 1-3/8 | LD*-32P10 LD*-32P40 LD*-32P80 |
|||||||||
| 2-1/2 | 20 18 16 |
2.430 2.402 2.370 |
1 | 3/16 | 1/16 | 1-3/8 | LD*-40T20 LD*-40T18 LD*-40T16 |
|||||||||
| 2-3/4 | 18 16 14 |
2.652 2.620 2.584 |
1 | 3/16 | 1/16 | 1-1/2 | LD*-44T18 LD*-44T16 LD*-44T14 |
|||||||||
| 2.875 (2-1/2 Pipe) |
Sch. 40 Sch. 80 |
2.469 2.323 |
1 | 3/16 | 1/16 | 1-5/8 | LD*-40P40 LD*-40P80 |
|||||||||
*Please Specify Bearing Material
**See Bearing Materials to complete Part Number.
For PVC pip, add suffix -PVC before completing part number.
For metal pipe, add suffix -M before completing part number.

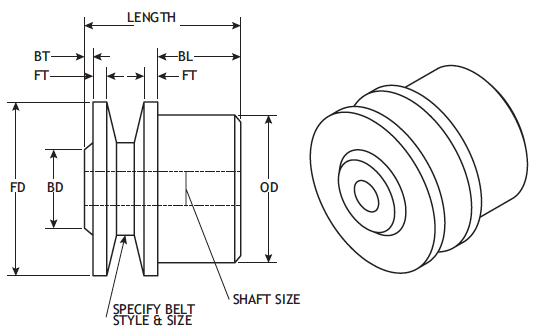

POBCO V Belt Roll End Bearings
For "A" or "4L" V-Belts"
*Please Specify Bearing Material
**See Bearing Materials to complete Part Number.
For PVC pipe, add suffix -PVC before completing part number.
For metal pipe, add suffix -M before completing part number.
| Tubing
Outside Dia. FD |
Tubing Gauge |
I.D. Metal Tubing OD |
LG. | FT | BT | BD | BL | Part No.** | ||||||||
| 1-3/4 | 16 14 |
1.620 1.584 |
2-3/16 | 3/16 | 1/16 | 1 | 1-1/4 | VB*-28T16 VB*-28T14 |
||||||||
| 1-7/8 | 16 13 |
1.745 1.685 |
2-3/16 | 3/16 | 1/16 | 1-1/8 | 1-1/4 | VB*-30T16 VB*-30T13 |
||||||||
| 1.900 | 16 | 1.770 | 2-3/16 | 3/16 | 1/16 | 1-1/8 | 1-1/4 | VB*-31T16 | ||||||||
| 2 | 16 14 13 11 |
1.870 1.834 1.810 1.760 |
2-3/8 | 1/4 | 1/8 | 1-1/8 | 1-1/4 | VB*-32T16 VB*-32T14 VB*-32T13 VB*-32T11 |
||||||||
| 2-1/4 | 18 16 13 |
2.152 2.120 2.060 |
2-3/8 | 1/4 | 1/8 | 1-1/4 | 1-1/4 | VB*-36T18 VB*-36T16 VB*-36T13 |
||||||||
| 2-3/8 | 16 | 2.245 | 2-3/8 | 1/4 | 1/8 | 1-3/8 | 1-1/4 | VB*-38T16 | ||||||||
| 2.375 (2" Pipe) |
Sch. 40 Sch. 80 |
2.067 1.939 |
2-3/8 | 1/4 | 1/8 | 1-3/8 | 1-1/4 | VB*-32P40 VB*-32P80 |
||||||||
| 2-1/2 | 18 16 |
2.402 2.370 |
2-3/8 | 1/4 | 1/8 | 1-3/8 | 1-1/4 | VB*-40T18 VB*-40T16 |
||||||||
