POBCO Self Sealing (Blind Bore) Spring Loaded Ball Bearing

These bearings are ideal for the food processing industry. They are sealed to avoid moisture and bacteria build up in the tube. Benefits include: ease of fit, ease of cleaning, lower friction, corrosion resistant, eliminates need for stainless steel axles, no need for lubrication and maintenance free.

Part No.

Tube
Size

FD-
Tube Dia.

OD-
Tube ID

D

Load
Capacity
Lbs.

BBD 24P4007SLSS

1-1/2" Sch. 40

1.854"

1.610"

.250"

55 lbs.

BBD 32P4007SLSS

2" Sch. 40

2.368"

2.061"

.250"

55 lbs.

BBD 32P4007FL

2" Sch. 40

3.35"

2.061"

.250"

55 lbs.

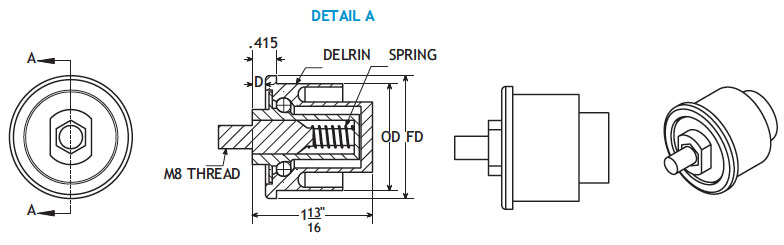

Self Sealing (Blind Bore) Spring Loaded Ball Bearing
BBD32P4007FL
(Oversized Flange for
Belt Support Rollers)

Self Sealing (Blind Bore) Spring Loaded Ball Bearing
BBD24P4007SLSS
BBD32P4007SLSS



Equipped with Internal S.S. Hex Bolt attached to external S.S. M8 nut and washer.
