POBCO Shoulder Relief Spherical Bearings
Available in a variety of POBCO Plastics, including:
- POBCO Ultra-D (UHMWPE),
- Plus (Food Grade Lube-filled UHMWPE),
- POBCO NYLONS, POBCO DELRIN®,
- POBCO Nywear(Lube-filled Nylon)
- POBCO High Temperature PTFE,
- POBCO Rulons®, Static-Reduced UHMW,
- High Temp UHMW and Wood Bearing Material.
(For Use in Standard Metal Housings)
(Special Sizes Available)

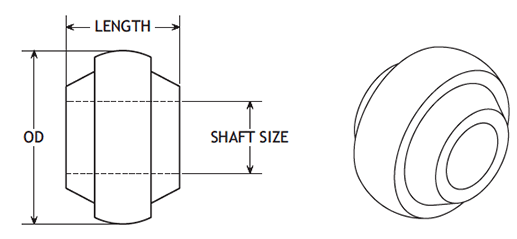

Shoulder Relief Spherical Bearings |
||||||
PLUS PART NO. |
NYWEAR PART NUMBER |
POBLON PART NUMBER |
SHAFT |
FIT SERIES |
O.D. SPHERE |
LENGTH |
| SBP0840mm14SR | SBNW0840mm14SR | SBTM0840mm14SR | 1/2" | - | 1.575" | 0.875" |
| SBP1040mm14SR | SBNW1040mm14SR | SBTM1040mm14SR | 5/8" | - | 1.575" | 0.875" |
| SBP1247mm20SR | SBNW1247mm20SR | SBTM1247mm20SR | 3/4" | 204 | 1.850" | 1.250" |
| SBP1452mm20SR | SBNW1452mm20SR | SBTM1452mm20SR | 7/8" | 205 | 2.047" | 1.250" |
| SBP1652mm20SR | SBNW1652mm20SR | SBTM1652mm20SR | 1" | 205 | 2.047" | 1.250" |
| SBP1962mm22SR | SBNW1962mm22SR | SBTM1962mm22SR | 1-3/16" | 206 | 2.441" | 1.375" |
| SBP2072mm24SR | SBNW2072mm24SR | SBTM2072mm24SR | 1-1/4" | 207 | 2.835" | 1.500" |
| SBP2372mm24SR | SBNW2372mm24SR | SBTM2372mm24SR | 1-7/16" | 207 | 2.835" | 1.500" |
| SBP2480mm24SR | SBNW2480mm24SR | SBTM2480mm24SR | 1-1/2" | 208 | 3.150" | 1.500" |
| SBP2885mm24SR | SBNW2885mm24SR | SBTM2885mm24SR | 1-3/4" | 209 | 3.346" | 1.732" |
| SBP3090mm24SR | SBNW3090mm24SR | SBTM3090mm24SR | 1-7/8" | 210 | 3.543" | 1.732" |
| SBP3190mm24SR | SBNW3190mm24SR | SBTM3190mm24SR | 1-15/16" | 210 | 3.543" | 1.732" |
| SBP32100mm24SR | SBNW32100mm24SR | SBTM32100mm24SR | 2" | 211 | 3.937" | 1.968" |
| SBP39110mm28SR | SBNW39110mm28SR | SBTM39110mm28SR | 2-7/16" | 212 | 4.330" | 2.126" |
* Please Specify Bearing Material SR=Shoulder Relief
POBCO Shoulder Relief Spherical Bearings are excellent alternatives to ball bearing units when environments are dirty and corrosive resulting in premature failure of ball bearing units.
POBCO Plus is an economical material choice. providing low friction surface, and also complies with USDA and FDA regulations. For higher loads, consider POBCO Nywear in the natural food grade color. Applications requiring high temperature or extreme chemical resistance are more suitable for POBCO PTFE, and POBCO Rulons.
