POBCO Trimount® 2 Bolt Flanges
Inner Spherical Bearings are available in a variety of
POBCO Plastics including Ultra-D (UHMWPE),
Plus (Food Grade Lube-filled UHMWPE), Nylon,
Delrin® and POBCO-B (Self-Lubricating Hardwood).
Housing Materials:
Zinc Plated Steel (standard)
304 Stainless Steel (add "SS" to end of part #)
These mounting dimensions are the same as similar mounts manufactured by many major producers of anti-friction and direct journal contact bearings.
Click here for: Sperical Bearing Inserts
· Indicates Most Common Stainless Steel Mounts

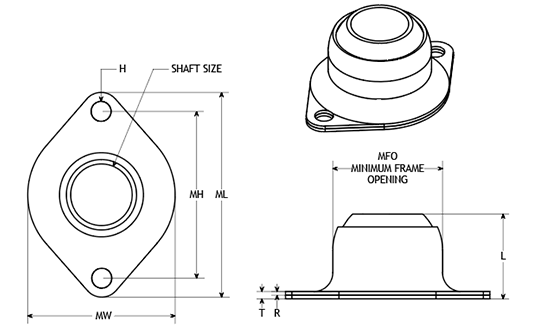

TriMount 2-Bolt Side Flanges - 1" Light Duty Mount |
||||||||||
| Sphere | MH | ML | MW | L | MFO | R | H | T | Shaft Size*** |
Part No.** |
| 1" Sphere Light Duty Mount |
1-3/4" | 2-5/16" | 1-1/8" | 9/16" | 1-1/4" | 1/16" | 9/32" Dia. | 1/16" | 1/4" 5/16" 3/8" 7/16" 1/2" 9/16" 5/8" |
·FM*-04 ·FM*-05 ·FM*-06 ·FM*-07 ·FM*-08 ·FM*-09 ·FM*-10 |
(Available with Molded Nylon Inserts) |
||||||||||
TriMount 2-Bolt Side Flanges - 1-3/16" Light Duty Mount |
||||||||||
| Sphere | MH | ML | MW | L | MFO | R | H | T | Shaft Size*** |
Part No.** |
| 1-3/16" Sphere Light Duty Mount |
2-1/4" | 3" | 1-1/2" | 13/16" | 1-7/16" | 1/16" | 3/8" Dia. | 1/16" | 1/2" 9/16" 5/8" 11/16" 3/4" |
FL*-08 FL*-09 FL*-10 FL*-11 FL*-12 |
(3/4" Shaft Molded Nylon Insert Available) |
||||||||||
TriMount 2-Bolt Side Flanges - 1-11/16" Medium Duty Mount |
||||||||||
| Sphere | MH | ML | MW | L | MFO | R | H | T | Shaft Size*** |
Part No.** |
| 1-11/16" Sphere Medium Duty Mount |
2-3/4" | 3-3/8" | 2-7/16" | 1-13/32" | 2" | 5/32" | 21/64" Dia. | 1/8" | 1/2" 9/16" 5/8" 11/16" 3/4" 13/16" 7/8" 15/16" 1" |
·FA*-08 ·FA*-09 ·FA*-10 ·FA*-11 ·FA*-12 ·FA*-13 ·FA*-14 ·FA*-15 ·FA*-16 |
TriMount 2-Bolt Side Flanges - 2" Medium Duty Mount |
||||||||||
| Sphere | MH | ML | MW | L | MFO | R | H | T | Shaft Size*** |
Part No.** |
| 2" Sphere Medium Duty Mount |
3-9/32" | 4" | 2-3/4" | 1-9/16"
|
2-3/8" | 1/16"
|
25/64" Dia. | 9/64" | 3/4" 13/16" 7/8" 15/16" 1" 1-1/16" 1-1/8" 1-3/16" 1-1/4" |
·FB*-12 ·FB*-13 ·FB*-14 ·FB*-15 ·FB*-16 ·FB*-17 ·FB*-18 ·FB*-19 ·FB*-20 |
TriMount 2-Bolt Side Flanges - 2-1/2" Heavy Duty Mount |
||||||||||
| Sphere | MH | ML | MW | L | MFO | R | H | T | Shaft Size*** |
Part No.** |
| 2-1/2" Sphere Heavy Duty Mount |
3-7/8" | 4-25/32" | 3-3/8" | 1-13/16" | 2-7/8" | 1/16" 3/16" |
13/32" Dia. | 11/64" | 1" 1-1/16" 1-1/8" 1-3/16" 1-1/4" 1-5/16" 1-3/8" 1-7/16" 1-1/2" 1-9/16" 1-5/8" 1-11/16" 1-3/4" |
·FC*-16 ·FC*-17 ·FC*-16 ·FC*-19 ·FC*-20 ·FC*-21 ·FC*-22 ·FC*-23 ·FC*-24 ·FC*-25 ·FC*-26 ·FC*-27 ·FC*-28 |
* Please Specify Bearing Material
** See Properties of POBCO Materials to complete part number,
for two piece sphere, add suffix -TP before completing part number.
*** Any Shaft Size Is Available Up To The Maximum Listed Size For Each Amount
· Indicates Most Common Stainless Steel Mounts
