POBCO SnapIdle® Chain Tensioner
Engineering Data
PSI-SG2 Fixed Mount POBCO Snapidles

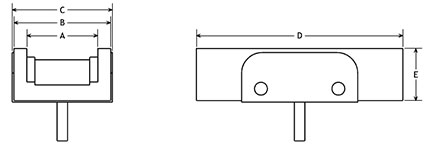

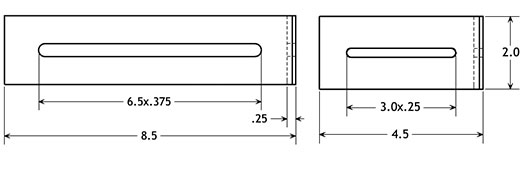

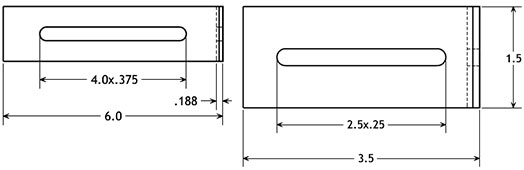

PSI-SG2 Fixed Mount POBCO Snapidle Dimensions |
||||||||||||
| Inches | Millimeters | |||||||||||
| S i n g l e P i n |
PSI # | A | B | C | D | E | S i n g l e P i n |
A | B | C | D | E |
| 40 | 0.93 | 1.56 | 2.81 | 3.00 | 1.00 | 23.8 | 39.6 | 71.4 | 76.2 | 25.4 | ||
| 50 | 1.12 | 1.75 | 3.00 | 3.50 | 1.00 | 28.5 | 44.4 | 76.2 | 88.9 | 25.4 | ||
| 60 | 1.37 | 2.00 | 3.25 | 4.00 | 1.00 | 34.9 | 50.8 | 82.6 | 101.6 | 25.4 | ||
| 100 | 2.06 | 2.68 | 4.18 | 5.00 | 1.25 | 52.3 | 68.2 | 106.3 | 127.0 | 28.5 | ||
| 120 | 2.68 | 3.43 | 4.93 | 5.50 | 1.50 | 68.2 | 87.3 | 125.4 | 139.7 | 38.1 | ||
