POBCO SnapIdle® Chain Tensioner

Engineering Data

Narrow, Space Saver & Standard POBCO Snapidles

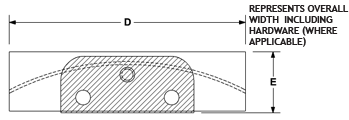

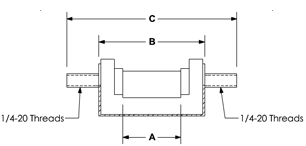

Narrow and Space Saver POBCO Snapidle Dimensions

Narrow
Profile
Space
Saver
Profile
Inches
PSI # PSI # A B C D E
25-N   .312 1.09 1.09 2.50 1.126
35-N   .470 1.09 1.09 2.50 1.126
40-N   .625 1.50 1.68 3.00 1.036
50-N   .750 1.69 1.87 3.50 1.036
  60-N 1.06 1.94 2.50 4.00 1.286
  80-N 1.81 2.31 2.75 4.50 1.286
  100-N 1.56 2.65 3.00 5.00 1.548
  120-N 2.07 3.28 3.75 5.50 1.638
  140-N 2.07 3.28 3.75 5.50 1.638
  160-N 2.44 3.72 4.00 6.50 1.638
  180-N 2.63 4.05 4.50 7.00 1.649

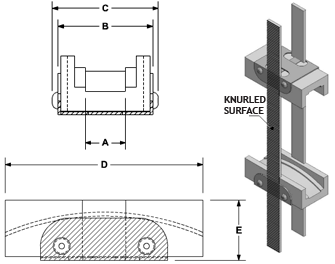

Standard POBCO Snapidles

Snapidles    Snapidles

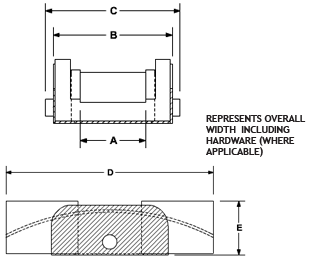

Standard POBCO Snapidle Dimensions

Inches
S
i
n
g
l
e

P
i
n
PSI # A=Inner Width B C D E
40 .620 1.50 2.68 3.00 1.036
50 .750 1.69 2.87 3.50 1.036
60 1.06 1.94 3.12 4.00 1.036
80 1.31 2.32 3.75 4.50 1.036
100 1.56 2.65 4.06 5.00 1.388
120 2.07 3.40 4.81 5.50 1.638
D
u
a
l

P
i
n
140 2.07 3.40 4.81 5.50 1.638
160 2.44 3.84 5.25 6.50 1.638
180 2.63 4.18 5.56 7.00 1.649
200 2.91 4.65 6.00 7.50 2.70
240 4.19 6.02 7.37 8.00 2.70
***

*** #300, #400, #500 and #600 are assembled to the width of the chain ordered.
For this reason, specific dimenstional information and weights will be supplied on request by POBCO.
