POBCO Chain Guides - Bevel Design

CURVED Wear Strip and Straights

INFORMATION NEEDED TO MAKE TRACK CHAIN GUIDES:

1. Chain No.

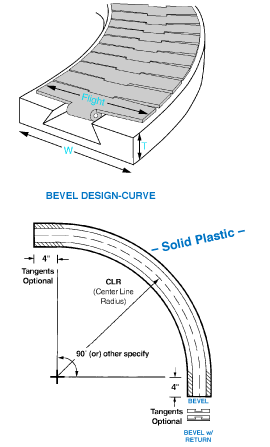

2. Chain Style (ie: TAB or BEVEL) see dwg.
3. Flight Width (Chain Width)
4. Track Thickness "T" & Width "W"
5. Center Line Radius (CLR) ie: 18, 24, 30 etc.
6. Circle segment (90" & 45" curves most common) 30" and larger CLR-please inquire
7. Single or Multiple strands (Flights)
8. Tangents Optional (Other lengths available)
9. Chain Guide Plastic Material and Color
10. Chain Speeds and Operating Conditions per maximum surface speeds listed here
11. Manufacturer of Chain

SUGGESTED MATERIALS	Maximum Speeds
“U” ULTRA-D (UHMW)	100 fpm
“URB” Black REPRO UHMW	100 fpm
“UXC” Blue	350 fpm
"P" Plus (Oil filled UHMW)	300 fpm
“MD” Moly Filled Nylon	150 fpm

POBCO Bevel Chain Guide Standard Data:

Chain Flight Width	Straight Guide Width (W)
2-3/4" 3-1/4" 4-1/2" 6" 7-1/2" 10" 12"	3-1/4" 4" 5" 6-1/2" 8" 10-1/2" 12-1/2"

Chain Model	POBCO Standard Guide Thickness (T)
879 880 881 882 1701 1873 1874	1" 1" 1" 1 1/4" 1 1/4" 1 1/4" 1 1/4"

Please Specify Thickness
