POBCO Fasteners

(Drive Rivets, Mounting Pins & Screws)

POBCO Plastic Drive Rivets

POBCO Nylon Mounting Pins

POBCO Plastic Drive Rivet

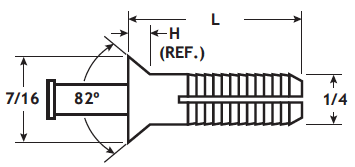

Plastic Drive Rivets

L H Grip Part
No.
Min. Max.
3/4" .111 3/16" 1/2" RN-0412
1" .111 1/4" 3/4" RN-0416
1-1/2" .111 3/4" 1-1/4" RN-0424



POBCO Nylon Mounting Pin
#PMP-0306
3/16" O.D. x 3/8" Lg.



Pobco Nylon Countersunk Screws

POBCO Hex Nut

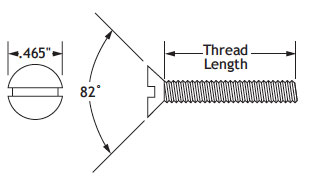

POBCO Nylon Countersunk Screws

Nylon Countersunk Screws

Part No. Thread Size Thread Length
NCS-1/4-20L5/8 1/4-20 5/8"
NCS-1/4-20L3/4 1/4-20 3/4"
NCS-1/4-20L1 1/4-20 1"
NCS-1/4-20L1.5 1/4-20 1-1/2"
NCS-1/4-20L2 1/4-20 2"
NCS-1/4-20L2.5 1/4-20 2-1/2"

These nylon Screws come with Hex Nuts for fastening. They are used to fasten Wear Strips, Chain Guides and other component items. Other size lenghts are available. Maximum quantities may apply.

Hex Nut
Part No. ΒΌ-20HNN
HEX NUT IS ORDERED SEPARATELY



Aluminum Extrusion Hardware and Fasteners

093ww251n06
093ww252n06
096h06410
96h08415
096005s01
096036
096235
096284f

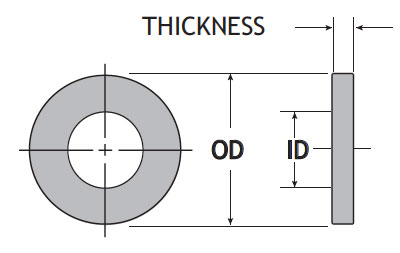

Related Products: Thrust Washer
