POBCO SnapIdle^® Chain Tensioner

ENGINEERING DATA

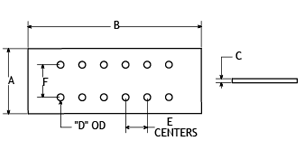

Side Strap POBCO Snapidle® Dimensions
Inches
Snapidle Size	A	B	C	D	E	F
PSI-25 and PSI-35	.750	12"	.125	N.A.	N.A.	N.A.
PSI-40N and PSI-50N	.750	12"	.125	N.A.	N.A.	N.A.
PSI-40 thru PSI-60	1.00	12"	.187	.290	.50	N.A.
PSI-80 thru PSI-120	1.50	16"	.250	.290	.50	N.A.
PSI-140 thru PSI-180	3"	16"	1.94	2.50	.50	1.50
PSI-200	3"	24"	2.31	2.50	.75	1.50
PSI-240	3"	36"	2.65	2.50	.75	1.50

Side Strap POBCO Snapidle Pin Data
Snapidle Size	Length (± .015")	OD (± .003")	Threads Per Inch Class 214 (MIL-S-7742)	Maximum Installation Torque Inch lbs.
PSI-40 thru PSI-60	0.625	0.250	20	80
PSI-80 thru PSI-180	0.750	0.312	18	185
PSI-200 and PSI-240	0.750	0.312	18	186
Material: Heat Treated Carbon Steel Finish: Zinc Spec. QQ-Z-325 Type 1 Class 3 plus clear chromate passivation.
