POBCO Pulleys & Assemblies

POBCO Pulleys are normally furnished in green UHMWPE-Ultra-D, Nylon(s), Delrin(s) and lubricant-filled POBCO-B hardwood. POBCO pulleys require no lubrication and are particularly adaptable to the wet, chemical laden environments commonly found in the food-can-beverage industry.


Pulley Assembly

Green Ultra-D Can Line Cable Pullys

Cable Dia.

OD

Part No.*

3/8

2"

3/8C3210-08

3"

3/8C4810-08

1/2

3"

1/2C4810-08

*Plain bore for 1/2" shaft

Can Line Cable Pulleys are furnished with plain or with bushings and/or all attaching hardware including nut, bolt and washer.



Pulley Assembly

Metal Bushing Inserts

Bolt Size
(ID)

Material

Part
No.

1/4

Steel

SLSI-0408011

Stainless

SLSS-0408011

5/16

Steel

SLSI-0508011

Stainless

SLSS-0508011

3/8

Steel

SLSI-0508011

Stainless

SLSS-0608011

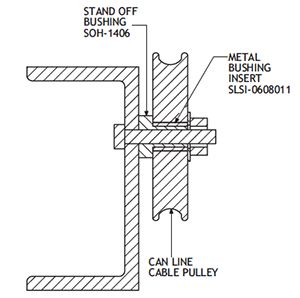

Plastic Stand-Off Bushing
HDPE Stand-Off Bushing

Part Number: SOH-1406

This insert provides a 1/4" space between the pulley and its mounting surface. It is intended to be used with metal bushing insert part numbers SLSI-0608011 and SLSS-0608011 (3/8" bolt size).


Delrin® SS Ball Bearing Pulley
Part# 3/8 C4810-04DSS  New! Comes complete with Straight Stand-off Extension.
1/4" I.D. x 3" O.D. x 5/8" Wide (.840" wide including Stand-off Extension)
See Style Q Plastic Ball Bearing Pulley
