POBCO Conveyor Rollers (Stainless)

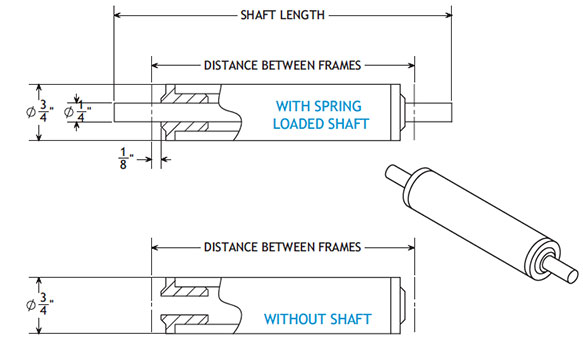

POBCO’s “SSP3/4” Series rollers are constructed of 3/4” diameter 16 gauge stainless steel tubing & UHMW Roll End Bearings with or without 1/4” diameter SS shaft spring loaded. Overall length of roller is made .25” shorter than the between frame dimension.
SSP3/4 Series |
||
| BETWEEN FRAME | 1/4” BORE NO SHAFT ROLLER NUMBER |
1/4” DIA. SS SHAFT SPRING LOADED |
| 3.50 | SSP3/4L3.25 | SSP3/4L3.25SL |
| 4.75 | SSP3/4L4.50 | SSP3/4L4.50SL |
| 7.75 | SSP3/4L7.50 | SSP3/4L7.50SL |
| 10.25 | SSP3/4L10.00 | SSP3/4L10.00SL |
| 13.00 | SSP3/4L12.75 | SSP3/4L12.75SL |

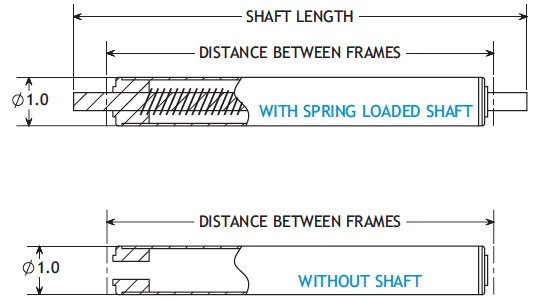

POBCO’s “SSP1.0” Series rollers are constructed of 1” dia. 18 ga. stainless tube and Delrin Roll End Bearings with or without 3/8” diameter SS shaft spring loaded. Overall length of roller is made .25” shorter than the between frame dimension.
SSP1.0 Series |
||
| BETWEEN FRAME | 3/8” BORE NO SHAFT | 3/8” ROUND SS SPRING LOADED |
| 3.50 | SSP1.0L3.25 | SSP1.0L3.25SL |
| 4.75 | SSP1.0L4.50 | SSP1.0L4.50SL |
| 7.75 | SSP1.0L7.50 | SSP1.0L7.50SL |
| 10.25 | SSP1.0L10.00 | SSP1.0L10.00SL |
| 13.00 | SSP1.0L12.75 | SSP1.0L12.75SL |

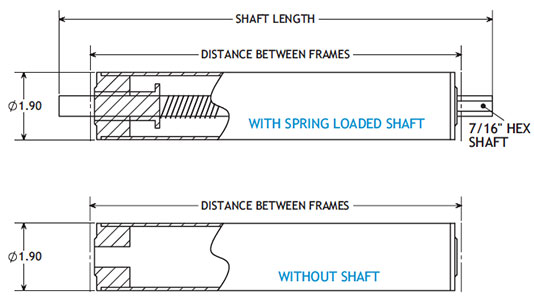

POBCO’s “SSP1.9” Series rollers are constructed of 1-1/2” sch. 40 (1.90” Dia.) stainless pipe, UHMW Roll End Bearings with or without 7/16” Hex SS shaft spring loaded. Overall length of roller is made .25” shorter than the between frame dimension.
SSP1.9 Series |
||
| BETWEEN FRAME | 1/2” BORE NO SHAFT ROLLER NUMBER |
7/16” HEX SS SHAFT SPRING LOADED |
| 9.00 | SSP1.9L8.75 | SSP1.9L8.75SL |
| 10.25 | SSP1.9L10.00 | SSP1.9L10.00SL |
| 13.00 | SSP1.9L12.75 | SSP1.9L12.75SL |
| 16.00 | SSP1.9L15.75 | SSP1.9L15.75SL |
| 18.00 | SSP1.9L17.75 | SSP1.9L17.75SL |
| 24.00 | SSP1.9L23.75 | SSP1.9L23.75SL |

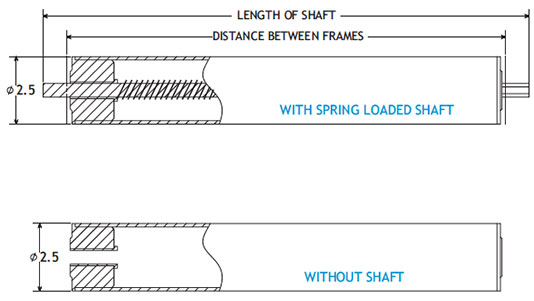

POBCO’s “SSP2.5” Series rollers are constructed of 2-1/2” dia. 11 ga. stainless tube and UHMW Roll End Bearings with or without 7/16” Hex SS shaft spring loaded. Overall length of roller is made .25” shorter than the between frame dimension.
SSP2.5 Series |
||
| BETWEEN FRAME | 5/8” BORE NO SHAFT ROLLER NUMBER |
7/16” HEX SS SHAFT SPRING LOADED |
| 16.00 | SSP2.5L15.75 | SSP2.5L15.75SL |
| 18.00 | SSP2.5L17.75 | SSP2.5L17.75SL |
| 22.00 | SSP2.5L21.75 | SSP2.5L21.75SL |
| 24.00 | SSP2.5L23.75 | SSP2.5L23.75SL |
