POBCO Nylon Locking Collars
Also available in other Plastic & Hardwood Materials & Steel/Stainless Streel

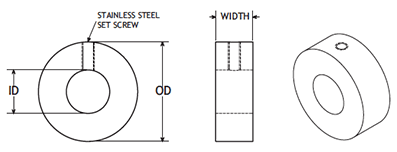

One Piece Shaft Collar |
Nylon
Part
No. |
I.D.
Inches |
O.D.
Inches |
Width
Inches |
Set
Screw
Size |
| LCN041207 |
1/4" |
3/4" |
7/16" |
10-24 x 1/4" |
| LCN051607 |
5/16" |
1" |
7/16" |
10-24 x 1/4" |
| LCN061607 |
3/8" |
1" |
7/16" |
10-24 x 1/4" |
| LCN071407 |
7/16" |
7/8" |
7/16" |
1/4-20 x 1/4" |
| LCN081607 |
1/2" |
1" |
7/16" |
1/4-20 x 1/4" |
| LCN081807* |
1/2" |
1-1/8" |
7/16" |
1/4-20 x 1/4" |
| LCN091808 |
9/16" |
1-1/8" |
1/2" |
1/4-20 x 1/4" |
| LCN101808 |
5/8" |
1-1/8" |
1/2" |
5/16-18 x 1/4" |
| LCN122009 |
3/4" |
1-1/4" |
9/16" |
5/16-18 x 1/4" |
Nylon
Part
No. |
I.D.
Inches |
O.D.
Inches |
Width
Inches |
Set
Screw
Size |
| LCN142409 |
7/8" |
1-1/2" |
9/16" |
5/16-18 x 5/16" |
| LCN162610 |
1" |
1-5/8" |
5/8" |
5/16-18 x 5/16" |
| LCN193211 |
1-13/16" |
2" |
11/16" |
3/8-16 x 3/8" |
| LCN203211 |
1-1/4" |
2" |
11/16" |
3/8-16 x 3/8" |
| LCN223412 |
1-3/8" |
2-1/8" |
3/4" |
3/8-16 x 3/8" |
| LCN233612 |
1-7/16" |
2-1/4" |
3/4" |
3/8-16 x 3/8" |
| LCN243612 |
1-1/2" |
2-1/4" |
3/4" |
3/8-16 x 3/8" |
| LCN264013 |
1-5/8" |
2-1/2" |
13/16" |
3/8-16 x 3/8" |
| LCN284414 |
1-3/4" |
2-3/4" |
7/8" |
1/2-13 x 1/2" |
| LCN304414 |
1-7/8" |
2-3/4" |
7/8" |
1/2-13 x 1/2" |
Nylon
Part
No. |
I.D.
Inches |
O.D.
Inches |
Width
Inches |
Set
Screw
Size |
| LCN314814 |
1-15/16" |
3" |
7/8" |
1/2-13 x 1/2" |
| LCN324814 |
2" |
3" |
7/8" |
1/2-13 x 1/2" |
| LCN355215 |
2-3/16" |
3-1/4" |
15/16" |
1/2-13 x 1/2" |
| LCN365215 |
2-1/4" |
3-1/4" |
15/16" |
1/2-13 x 1/2" |
| LCN395616 |
2-7/16" |
3-1/2" |
1" |
1/2-13 x 1/2" |
| LCN405616 |
2-1/2" |
3-1/2" |
1" |
1/2-13 x 1/2" |
Nylon
Part
No. |
I.D.
Inches |
O.D.
Inches |
Width
Inches |
Set
Screw
Size |
| LCN446016 |
2-3/4" |
3-3/4" |
1" |
1/2-13 x 1/2" |
| LCN486818 |
3" |
4-1/4" |
1-1/8" |
1/2-13 x 5/8" |
| LCN527218 |
3-1/4" |
4-1/2" |
1-1/8" |
1/2-13 x 5/8" |
| LCN567618 |
3-1/2" |
4-3/4" |
1-1/8" |
1/2-13 x 5/8" |
| LCN608018 |
3-3/4" |
5" |
1-1/8" |
1/2-13 x 5/8" |
| LCN648418 |
4" |
5-1/4" |
1-1/8" |
1/2-13 x 5/8" |
* Black Nylon |

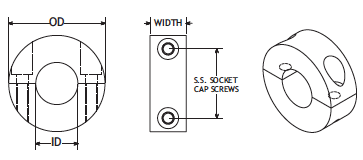

Two Piece Shaft Collar |
Nylon
Part
No. |
I.D.
Inches |
O.D.
Inches |
Width
Inches |
Set
Screw
Size |
| LCN041606TP |
1/4" |
1" |
3/8" |
6-32 |
| LCN051606TP |
5/16" |
1" |
3/8" |
6-32 |
| LCN062008TP |
3/8" |
1-1/4" |
1/2" |
6-32 |
| LCN072008TP |
7/16" |
1-1/4" |
1/2" |
6-32 |
| LCN082209TP |
1/2" |
1-3/8" |
9/16" |
8-32 |
| LCN092209TP |
9/16" |
1-3/8" |
9/16" |
8-32 |
| LCN102610TP |
5/8" |
1-5/8" |
5/8" |
10-32 |
| LCN122810TP |
3/4" |
1-3/4" |
5/8" |
10-32 |
| LCN143212TP |
7/8" |
2" |
3/4" |
10-32 |
Nylon
Part
No. |
I.D.
Inches |
O.D.
Inches |
Width
Inches |
Set
Screw
Size |
| LCN163412TP |
1" |
2-1/8" |
3/4" |
1/4-20 |
| LCN193712TP |
1-3/16" |
2-5/16" |
3/4" |
1/4-20 |
| LCN203812TP |
1-1/4" |
2-3/8" |
3/4" |
1/4-20 |
| LCN224012TP |
1-3/8" |
2-1/2" |
3/4" |
1/4-20 |
| LCN234212TP |
1-7/16" |
2-5/8" |
3/4" |
1/4-20 |
| LCN244212TP |
1-1/2" |
2-5/8" |
3/4" |
1/4-20 |
| LCN264815TP |
1-5/8" |
3" |
15/16" |
5/16-18 |
| LCN285015TP |
1-3/4" |
3-1/8" |
15/16" |
5/16-18 |
| LCN305215TP |
1-7/8" |
3-1/4" |
15/16" |
5/16-18 |
| LCN315215TP |
1-15/16" |
3-1/4" |
15/16" |
5/16-18 |
Nylon
Part
No. |
I.D.
Inches |
O.D.
Inches |
Width
Inches |
Set
Screw
Size |
| LCN325415TP |
2" |
3-3/8" |
15/16" |
5/16-18 |
| LCN355815TP |
2-3/16" |
3-5/8" |
15/16" |
5/16-18 |
| LCN365815TP |
2-1/4" |
3-5/8" |
15/16" |
5/16-18 |
| LCN396618TP |
2-7/16" |
4-1/8" |
1-1/8" |
3/8-16 |
| LCN406618TP |
2-1/2" |
4-1/8" |
1-1/8" |
3/8-16 |
| LCN447018TP |
2-3/4" |
4-3/8" |
1-1/8" |
3/8-16 |
Nylon
Part
No. |
I.D.
Inches |
O.D.
Inches |
Width
Inches |
Set
Screw
Size |
| LCN487218TP |
3" |
4-1/2" |
1-1/8" |
3/8-16 |
| LCN527618TP |
3-1/4" |
4-3/4" |
1-1/8" |
3/8-16 |
| LCN568018TP |
3-1/2" |
5" |
1-1/8" |
3/8-16 |
| LCN608418TP |
3-3/4" |
5-1/4" |
1-1/8" |
3/8-16 |
| LCN648818TP |
4" |
5-1/2" |
1-1/8" |
3/8-16 |
|
Please Specify Material If Not Nylon
- Other Sizes Available -
