POBCO Light Duty Molded Nylon-MD Sleeve Slit Flange Bearings
These low cost, thin wall, slit flange bearings provide good wear resistance and smooth maintenance free operation. These bearings are suitable for both rotational and linear movements. Operating temperature ranges from -40 degrees F to 176 degrees F maximum long term. Thin wall construction prevents excessive heat build up that could cause bearing failure. Thermal and moisture expansion is non-damaging because of the slit design. Typical industries include appliance and office maching manufacturing, automotive manufacturing, marine manufacturing and any metal on metal or shaft support application where space is minimal.
ID allows for clearance of that shaft size when installed. OD is housing bore.
Common sizes listed below. Please inquire about other sizes and materials.

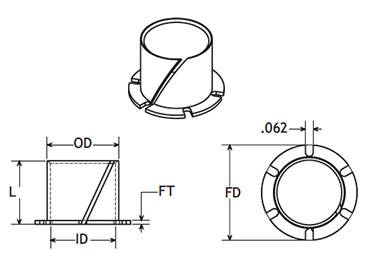

POBCO Slit Flange Bearings
Part |
ID Inches |
OD Inches |
Length |
Flange |
Flange |
|
SLITMD0303 |
3/16” |
0.2339 |
3/16” |
5/16” |
0.0252 |
|
SLITMD0404 |
1/4” |
0.2965 |
1/4” |
13/32” |
0.0252 |
|
SLITMD0505 |
5/16” |
0.3744 |
5/16” |
1/2” |
0.0299 |
|
SLITMD0606 |
3/8” |
0.437 |
3/8” |
19/32” |
0.0299 |
|
SLITMD0707 |
7/16” |
0.4996 |
7/16” |
21/32” |
0.0299 |
|
SLITMD0808 |
1/2” |
0.5618 |
1/2” |
3/4” |
0.0299 |
|
SLITMD1010 |
5/8” |
0.687 |
5/8” |
15/16” |
0.0299 |
|
SLITMD1212 |
3/4” |
0.8118 |
3/4” |
1-1/8” |
0.0299 |
|
SLITMD1414 |
7/8” |
0.937 |
7/8” |
1-5/16” |
0.0299 |
|
SLITMD1614 |
1” |
1.0933 |
7/8” |
1-1/2” |
0.0449 |
|

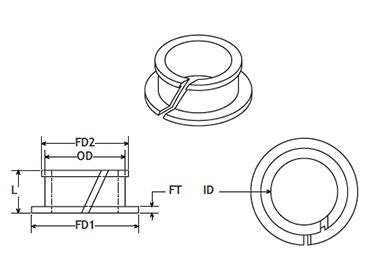

POBCO Slit Double Flange Bearings
Part |
ID Inches |
OD Inches |
Length |
Flange1 |
Flange2 |
Flange1&2 |
Metal Thickness |
|
SLITMD0301DF |
3/16” |
0.2343 |
0.138 |
5/16”ʼ |
1/4” |
0.03 |
.040/.075 |
|
SLITMD0302DF |
3/16” |
0.2343 |
0.200 |
5/16” |
1/4” |
0.03 |
.072/.135 |
|
SLITMD0401DF |
1/4” |
0.3125 |
0.138 |
7/16” |
11/32” |
0.03 |
.040/.075 |
|
SLITMD0402DF |
1/4” |
0.3125 |
0.200 |
7/16” |
11/32” |
0.03 |
.072/.135 |
|
SLITMD0501DF |
5/16” |
0.3750 |
0.138 |
1/2” |
13/32” |
0.03 |
.040/.075 |
|
SLITMD0502DF |
5/16” |
0.3750 |
0.200 |
1/2” |
13/32” |
0.03 |
.072/.135 |
|
SLITMD0601DF |
3/8” |
0.4375 |
0.138 |
9/16” |
15/32” |
0.03 |
.040/.075 |
|
SLITMD0602DF |
3/8” |
0.4375 |
0.200 |
9/16” |
15/32” |
0.03 |
.072/.135 |
|
SLITMD0701DF |
7/16” |
0.500 |
0.138 |
5/8” |
17/32” |
0.03 |
.040/.075 |
|
SLITMD0702DF |
7/16” |
0.500 |
0.200 |
5/8” |
17/32” |
0.03 |
.072/.135 |
|
SLITMD0801DF |
1/2” |
0.5625 |
0.138 |
11/16” |
19/32” |
0.03 |
.040/.075 |
|
SLITMD0802DF |
1/2” |
0.5625 |
0.200 |
11/16” |
19/32” |
0.03 |
.072/.135 |
|
SLITMD1001DF |
5/8” |
0.6875 |
0.138 |
7/8” |
23/32” |
0.03 |
.040/.075 |
|
SLITMD1002DF |
5/8” |
0.6875 |
0.200 |
7/8” |
23/32” |
0.03 |
.072/.135 |
|
SLITMD1201DF |
3/4” |
0.8125 |
0.138 |
1” |
27/32” |
0.03 |
.040/.075 |
|
SLITMD1202DF |
3/4” |
0.8125 |
0.200 |
1” |
27/32” |
0.03 |
.072/.135 |
|
