POBCO Mill Sprockets
Molded Black Repro UHMW

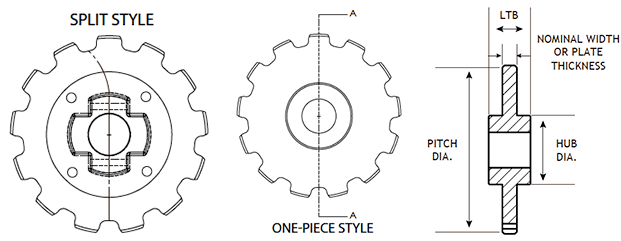

78 Series: 2.609" Pitch Chain One Piece and Split Style
Type C Hub, Plate thickness - 7/8"
Mill Sprockets |
||||||
Part No. One Piece |
Part No. Split |
# Teeth |
Pitch Dia. |
Hub Dia. |
LTB |
Bore |
| SPRURB78C512 | - | 5 | 4.44" | 3-1/8" | 2-1/8" | 3/4" |
| SPRURB78C616 | - | 6 | 5.22" | 4" | 2-1/4" | 1" |
| SPRURB78C816 | - | 8 | 6.82" | 3-7/8" | 2-7/8" | 1" |
| SPRURB78C923 | - | 9 | 7.63" | 3-7/8" | 2-7/8" | 1-7/16" |
| SPRURB78C928 | - | 9 | 7.63" | 3-7/8" | 2-7/8" | 1-3/4" |
| SPRURB78C931 | - | 9 | 7.63" | 3-7/8" | 2-7/8" | 1-15/16" |
| SPRURB78C1031 | - | 10 | 8.44" | 3-7/8" | 2-7/8" | 1-15/16" |
| SPRURB78C1231 | SPRURB78C1231TP | 12 | 10.08" | 4-3/4" | 2-7/8" | 1-15/16" |
| SPRURB78C1235 | SPRURB78C1235TP | 12 | 10.08" | 4-3/4" | 2-7/8" | 2-3/16" |
| SPRURB78C1239 | SPRURB78C1239TP | 12 | 10.08" | 4-3/4" | 2-7/8" | 2-7/16" |
| SPRURB78C1247 | SPRURB78C1247TP | 12 | 10.08" | 4-3/4" | 2-7/8" | 2-15/16" |
| SPRURB78C1331 | SPRURB78C1331TP | 13 | 10.90" | 4-3/4" | 2-7/8" | 1-15/16" |
| SPRURB78C1335 | SPRURB78C1335TP | 13 | 10.90" | 4-3/4" | 2-7/8" | 2-3/16" |
| SPRURB78C1339 | SPRURB78C1339TP | 13 | 10.90" | 4-3/4" | 2-7/8" | 2-7/16" |
| SPRURB78C1347 | SPRURB78C1347TP | 13 | 10.90" | 4-3/4" | 2-7/8" | 2-15/16" |
| SPRURB78C1431 | SPRURB78C1431TP | 14 | 11.72" | 4-3/4" | 2-7/8" | 1-15/16" |
| SPRURB78C1435 | SPRURB78C1435TP | 14 | 11.72" | 4-3/4" | 2-7/8" | 2-3/16" |
| SPRURB78C1439 | SPRURB78C1439TP | 14 | 11.72" | 4-3/4" | 2-7/8" | 2-7/16" |
| SPRURB78C1447 | SPRURB78C1447TP | 14 | 11.72" | 4-3/4" | 2-7/8" | 2-15/16" |
Please inquire about chain sizes suitable to the above sprockets.
Other sizes avaiable as machined items, please inquire.
