POBCO Plastic Ball Bearing Pulleys
Advantages:
- Gravity, Low Friction, Quiet
- No Lubrication Required
- Corrosion Resistant, No Maintenance

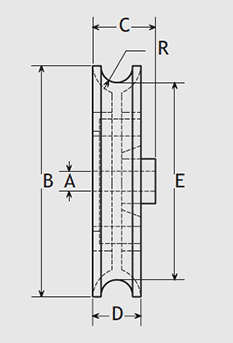

Style Q |

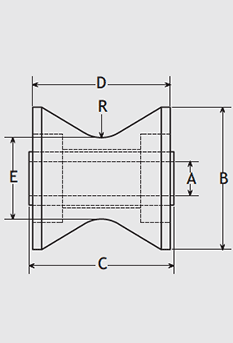

Style R |

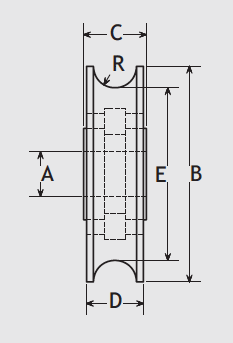

Style S |
|
|
|
 |
 |
 |
Acetal Gravity Pulleys with Acetal Races and Carbon or 420 Stainless Steel Balls |
|||||||||||
| A | B | C | D | E | Static | Max RPM | |||||
| Part Number |
Style # | (ID) | (OD) | Bore Width |
Pulley Width |
Root Dia. |
R (Radius) |
To Suit |
Load | w/no Load | Color |
| 1/8C140603DSS | S | .187" | .875" | .375" | .300" | .720" | 1/16" | 1/8" cable | 30 | 200 | Black |
| PRD181804CS | R | .250" | 1.125" | 1.125" | 1.062" | .625" | .420" | .840" dia pipe | 33 | 200 | Natural |
| 1/4C200604DSS | S | .250" | 1.25" | .364" | .340" | 1.000" | 1/8" | 1/4" cable | 33 | 200 | Natural |
| 1/4C280704DCS | S | .250" | 1.75" | .437" | .375" | 1.125" | 1/8" | 1/4" cable | 55 | 200 | Natural |
| 3/16C290610DSS | S | .625" | 1.812" | .375" | .375" | 1.610" | 3/32" | 3/16" cable | 40 | 1000 | Black |
| 1C322205CS | R | .312" | 2.00" | 1.30" | 1.187" | 1.437" | 1/2" | 1" cable | 80 | 1000 | Natural |
| IBD362806CS | R | .375" | 2.25" | 1.75" | 1.625" | 1.250" | .32" Flat | various | 80 | 1000 | Black |
| 3/8C481004DSS | Q | .250" | 3.00" | 13/16" | 5/8" | 2-9/16" | 3/16" | 3/8" cable | 55 | 1000 | Lite Gray |
SS = 420 Stainless Balls CS = Carbon
Applications include rope and cable guides, overhead conveyors and exercise equipment.
