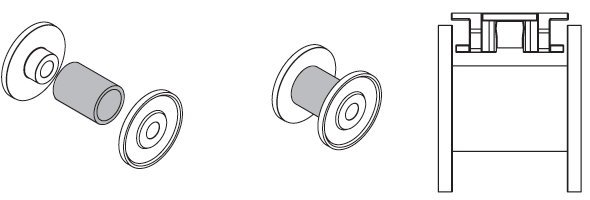

POBCO Plastic Idlers
Split design for use of 820, 821, 880, 880TAB, 882 and 882TAB Chains
Heavy Duty - Chemical Resistant
Special Features:
- Self Tracking
- Fixed or Free Running
- Rigid and Tough
- Ultra-High Loading Capacity
- Silent Running
- No Lubrication
- 90% Less weight than steel
- Clean and Hygienic
- Maintenance Free
- Resistant to most chemical
and corrosive conditions
- For Steel or Plastic Chain
- May Be Keyed to Shaft
or Free-Wheel
|
Adjustable Face Width Spacers are supplied for 821, 880TAB, 882, 882TAB to accommodate your chain width.
| Part Number |
No. of Teeth |
Stock Bore |
Pitch Diam. |
Chain Type |
| DV19P81512 |
19 |
3/4” |
4.62 |
815 |
| DV19P81516 | 19 |
1” |
4.62 |
815 |
| DV19P82012 | 19 |
3/4” |
4.62 |
820 |
| DV19P82016 | 19 |
1” |
4.62 |
820 |
| DV19P82112 | 19 |
3/4” |
4.62 |
821 |
| DV19P82116 | 19 |
1” |
4.62 |
821 |
| DV19P89012 | 19 |
3/4” |
4.62 |
880 |
| DV19P88016 | 19 |
1” |
4.62 |
880 |
| DV19P880T12 | 19 |
3/4” |
4.62 |
880 Tab |
| DV19P880T16 | 19 |
1” |
4.62 |
880 Tab |
| DV19P88212 | 19 |
3/4” |
4.62 |
882 |
| DV19P88216 | 19 |
1” |
4.62 |
882 |
| DV19P882T12 | 19 |
3/4” |
4.62 |
882 Tab |
| DV19P882T16 | 19 |
1” |
4.62 |
882 Tab |
| DV21P81512 | 21 |
3/4” |
5.089 |
815 |
| DV21P81516 | 21 |
1” |
5.089 |
815 |
| DV21P82012 | 21 |
3/4” |
5.089 |
820 |
| DV21P82016 | 21 |
1” |
5.089 |
820 |
| DV21P82112 | 21 |
3/4” |
5.089 |
821 |
| DV21P82116 | 21 |
1” |
5.089 |
821 |
| DV21P89012 | 21 |
3/4” |
5.089 |
880 |
| DV21P88016 | 21 |
1” |
5.089 |
880 |
| DV21P880T12 | 21 |
3/4” |
5.089 |
880 Tab |
| DV21P880T16 | 21 |
1” |
5.089 |
880 Tab |
| DV21P88212 | 21 |
3/4” |
5.089 |
882 |
| DV21P88216 | 21 |
1” |
5.089 |
882 |
| DV21P882T12 | 21 |
3/4” |
5.089 |
882 Tab |
| DV21P882T16 | 21 |
1” |
5.089 |
882 Tab |
|
| Part Number |
No. of Teeth |
Stock Bore |
Pitch Diam. |
Chain Type |
| DV23P81512 | 23 |
3/4” |
5.56 |
815 |
| DV23P81516 | 23 |
1” |
5.56 |
815 |
| DV23P82012 | 23 |
3/4” |
5.56 |
820 |
| DV23P82016 | 23 |
1” |
5.56 |
820 |
| DV23P82112 | 23 |
3/4” |
5.56 |
821 |
| DV23P82116 | 23 |
1” |
5.56 |
821 |
| DV23P89012 | 23 |
3/4” |
5.56 |
880 |
| DV23P88016 | 23 |
1” |
5.56 |
880 |
| DV23P880T12 | 23 |
3/4” |
5.56 |
880 Tab |
| DV23P880T16 | 23 |
1” |
5.56 |
880 Tab |
| DV23P88212 | 23 |
3/4” |
5.56 |
882 |
| DV23P88216 | 23 |
1” |
5.56 |
882 |
| DV23P882T12 | 23 |
3/4” |
5.56 |
882 Tab |
| DV23P882T16 | 23 |
1” |
5.56 |
882 Tab |
| DV25P81512 | 25 |
3/4” |
6.032 |
815 |
| DV25P81516 | 25 |
1” |
6.032 |
815 |
| DV25P82012 | 25 |
3/4” |
6.032 |
820 |
| DV25P82016 | 25 |
1” |
6.032 |
820 |
| DV25P82112 | 25 |
3/4” |
6.032 |
821 |
| DV25P82116 | 25 |
1” |
6.032 |
821 |
| DV25P89012 | 25 |
3/4” |
6.032 |
880 |
| DV25P88016 | 25 |
1” |
6.032 |
880 |
| DV25P880T12 | 25 |
3/4” |
6.032 |
880 Tab |
| DV25P880T16 | 25 |
1” |
6.032 |
880 Tab |
| DV25P88212 | 25 |
3/4” |
6.032 |
882 |
| DV25P88216 | 25 |
1” |
6.032 |
882 |
| DV25P882T12 | 25 |
3/4” |
6.032 |
882 Tab |
| DV25P882T16 | 25 |
1” |
6.032 |
882 Tab |
|
