POBCO Ultra D Guide Angles (Wearshoes)

Ultra-D Carrying Wearshoe

Part
Number
W/H L CH M MH Holes
GAU-CW1 3" 5-1/2" 1-5/16" 7/8" 3-3/4" 1/2"
GAU-CW2 3" 5-1/2" 1-3/8" 7/8" 3-3/4" 1/2"
GAU-CW3 3" 6" 1-3/8" 1-1/8" 3-3/4" 1/2"

Ultra-D Carrying Wearshoe
Ultra-D Carrying Wearshoe

Ultra-D Single Hole Return Wearshoe

Part
Number
W/H L CH M Holes
GAU-RW1 3" 4" 1-5/16" 2" 1/2"
GAU-RW2 3" 4" 1-3/8" 2" 1/2"
GAU-RW3 3" 4-1/2" 1-3/8" 2-1/4" 1/2"
Ultra-D Single Hole Return Wearshoe
Ultra-D Single Hole Return Wearshoe

Ultra-D Double Hole Return Wearshoe

Part
Number
W/H L CH M MH Holes
GAU-DRW1 3" 4" 1-3/8" 7/8" 1-3/4" 1/2"
GAU-DRW2 3" 4-1/2" 1-3/8" 7/8" 2-1/4" 1/2"
GAU-DRW3 3" 6" 1-3/8" 1-1/8" 3-3/4" 1/2"
Ultra-D Double Hole Return Wearshoe
Ultra-D Double Hole Return Wearshoe

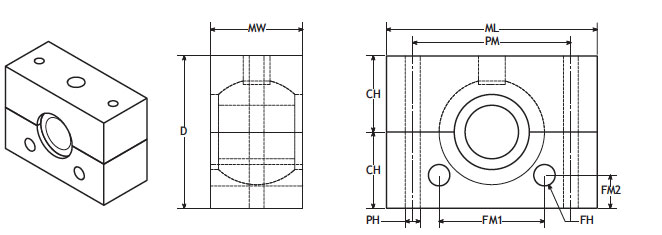

Self Aligning Mounts

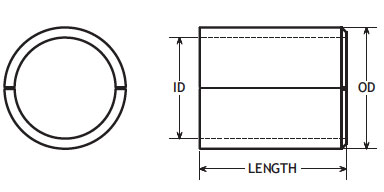

Clamp Fit Sleeve Bearings




POBCO Nylon Countersunk Screws



POBCO Nylon Countersunk Screws
Hex Nut Part No. 1/4-20 HNN





Nylon Countersunk Screws

Part No.

Thread Size

Thread Length

NCS-1/4-20L5/8 1/4-20 5/8"
NCS-1/4-20L3/4 1/4-20 3/4"
NCS-1/4-20L1 1/4-20 1"
NCS-1/4-20L1.5 1/4-20 1-1/2"
NCS-1/4-20L2 1/4-20 2"
NCS-1/4-20L2.5 1/4-20 2-1/2"



These nylon Screws come with Hex Nuts for fastening. They are used to fasten Wear Strips, Chain Guides and other component items. Other size lenghts are available. Maximum quantities may apply.


POBCO Interlocking Wear Strip

Available in a variety of POBCO Plastics, including POBCO NYLON MD, POBCO Ultra-D (UHMWPE), POBCO Plus (Fluid Lube-Filled UHMWPE)

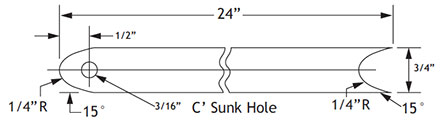

POBCO Interlocking Wearstrip
Size# 1/8" x 3/4" x 24" long
Part# ILWS*-0212L24

*Please Specify Material

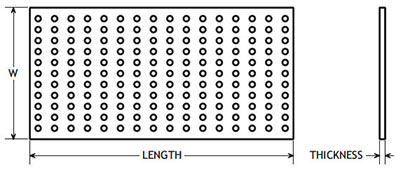

POBCO Custom Perforated Sheet

  • Available to your print in
  • POBCO Ultra-D
  • REPRO Black
  • Nylon
  • Polypropylene
  • and Other materials
