POBCO Wear Strip

Guide Rail Snap Ons

For additional Guide Rails see: Guide Rails and Wear Strip Assemblies

Materials:

UHMW
Part Number

Profile

A x B

C

D

E

F

G

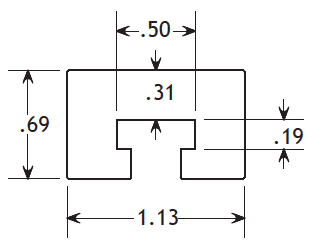

GRU-030811 5 3/16 x 1/2 5/16 5/16 - - -

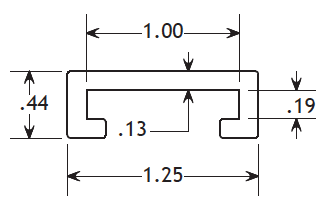

GRU-031607 1 3/16 x 1 3/4 1/8 - 7/16 -
GRU-050809 1 None 5/16 x 1/2 5/16 - 9/16 -

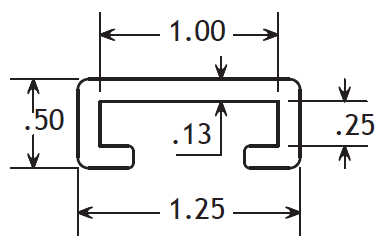

GRU-041607 2 1/4 x 1 5/8 1/8 - 1/2 -

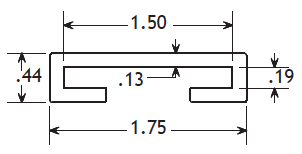

GRU-032407 1 3/16 x 1 1/2 3/4 1/8 - 7/16 -
GRU-033224 1 3/16 x 2 1 3/8 1/8 - 7/16 -
GRU-021802 1 1/8 x 7/8 11/16 1/8 - 3/8 -

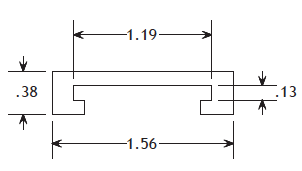

GRU-021906 1 1/8 x 1-3/16 1 3/16 - 3/8 -

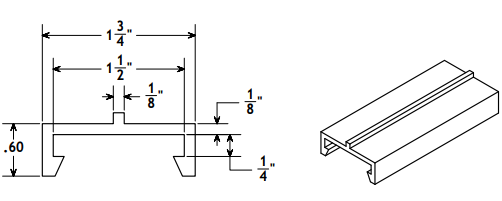

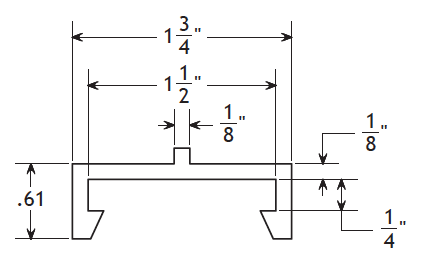

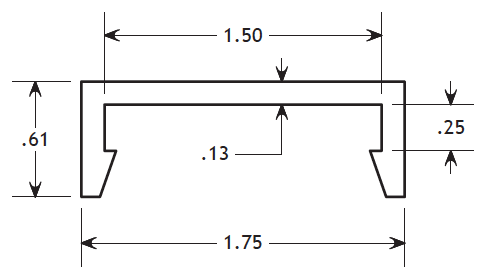

GRU-042410B 1 1/4 x 1-1/2 1-3/8 1/8 - 19/32 -

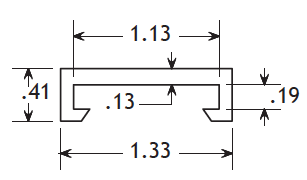

GRU-082404B 1 3/16 x 1-1/8 7/8 1/8 - 19/32 -

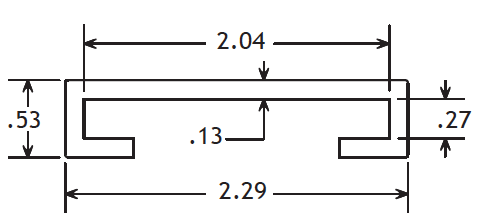

GRU-043205 Heavy Duty
1
1/4 x 2 1 3/8 1/8 - 17/32 -

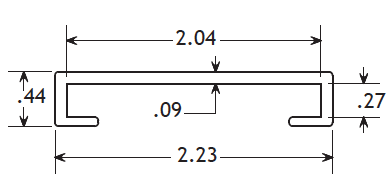

GRU-043205MD Medium Duty
1
1/4 x 2 1 11/16 .094 - 7/16 -
GRU-043205LD Light Duty
1
1/4 x 2 1 1/2 .075 - 7/16 -

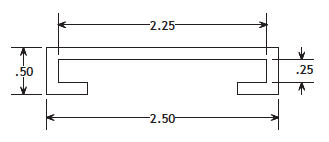

GRU-043608 1 1/4 x 2 1/4 1 5/8 1/8 - 1/2 -
GRU-063211 1 3/8 x 2 11/2 1/8 - 5/8 -
GRU-082411 2 1/2 x 1 1/2 15/16 3/32 - 11/16 -

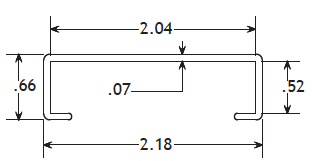

GRU-083212 1 1/2 x 2 1 1/2 1/8 - 23/32 -
GRU-122416 1 3/4 x 1 1/2 1 3/32 - 15/16 -
GRU-081615 3 1/2 x 1 3/4 3/16 3/8 15/16 9/32
GRU-081615LD 3 1/2 x 1 3/4 1/8 .400 7/8 1/4
GRU-091821 3 9/16 x 1 1/8 7/8 1/8 7/16 15/16 1/4
GRU-161623 3 1 x 1 7/16 1/8 3/8 1 7/16 7/32
GRU-141417 4 7/8 x7/8 1/2 3/32 - 1 1/16 -
GRU-161620* 4 1 x 1 1/2 1/8 - 1 1/4 -
GRU-202024 4 1 1/4 x 1 1/4 3/4 1/8 - 1 1/2 -
GRU-242428 4 1 1/2 x 1 1/2 3/4 1/8 - 1 3/4 -
GRU-243215 4 1 1/2 x 2 varies
w/flex
1/8 - 1 3/4 -
GRU-323236 4 2 x 2 varies
w/flex
1/8 - 2 1/4 -


Profile 1


Profile 2


Profile 3


Profile 4


Profile 5


Profiles 3 & 4 often used as upright vertical
supports for Spiral Cooler Conveyors.

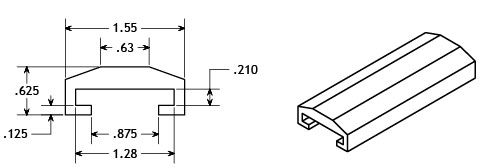

Ultra-D GRU-032010

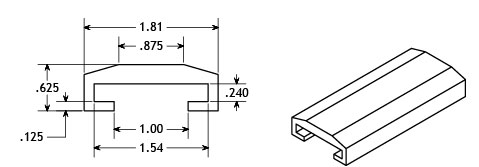

Ultra-D GRU-032410

Wear Strip - Guide Rail Snap-Ons

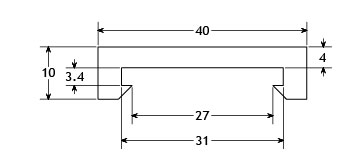

#GRU-2200 SOLID
(for Intralox 2200 belt)


#GRU-2400 SOLID
(for Intralox 2200 belt)
