POBCO Scraper Blades

Our Scraper Blades are made from a variety of plastic materials such as Acetal, UHMW and Urethane. The Blades are standard or custom in design and used to scrape excess material off of Rollers, Belting or other surfaces. They come in any desired profile in a variety of widths and lengths. Acetal is often used when a rigid food-grade plastic is necessary. For Belts with belt lacing a dual durometer Urethane is often used. The flexing action of the softer urethane contact edge allows belt lacing to pass under the scraper without joint stress. Hence damage to the belting surface is prevented or minimized.

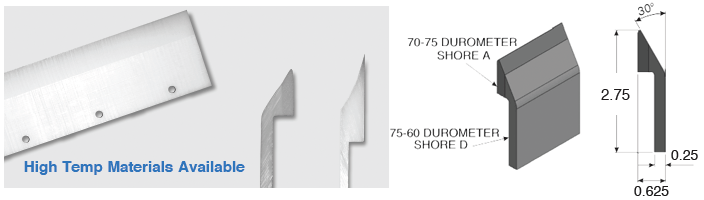

POBCO Plastic Scraper Blades Urethane Profile
Part # SCRAPERURE
COLOR - TAN
FDA COMPLIANT

Option A

Plastic Scraper Blades
Part # Material T W Y X Length
SCRD0848A Acetal 1/2" 3” 1-1/4” 1/4" 4, 8 or 10 ft
SCRD1048A Acetal 5/8” 3” 1-1/4” 1/4" 4, 8 or 10 ft
SCRUH0848A High Temp Ultra-D 1/2" 3” 1-1/4” 1/4" 5 or 10 ft
SCRUH1048A High Temp Ultra-D 5/8” 3” 1-1/4” 1/4" 5 or 10 ft
SCRTM0848A POBLON 1/2" 3” 1-1/4” 1/4" 4 ft
SCRTM1048A POBLON 5/8” 3” 1-1/4” 1/4" 4 ft
SCRD0848ABLUE Acetal Blue 1/2” 3” 1-1/4” 1/4" 4, 8 or 10 ft
SCRAMD0848A Metal Detectable Acetal Blue 1/2” 3” 1-1/4” 1/4" 4 ft
SCRD1048ABLUE Acetal Blue 5/8” 3” 1-1/4” 1/4" 4, 8 or 10 ft
SCRAMD1048A Metal Detectable Acetal Blue 5/8” 3” 1-1/4” 1/4" 4 ft

Option B

Plastic Scraper Blades
Part # Material T W Y X Length
SCRD0844B Acetal 1/2" 2-3/4” 2” 1/4" 4, 8 or 10 ft
SCRD1044B Acetal 5/8” 2-3/4” 2” 1/4" 4, 8 or 10 ft
SCRUH0844B High Temp Ultra-D 1/2" 2-3/4” 2” 1/4" 5 or 10 ft
SCRUH1044B High Temp Ultra-D 5/8” 2-3/4” 2” 1/4" 5 or 10 ft
SCRTM0844B POBLON 1/2" 2-3/4” 2” 1/4" 4 ft
SCRTM1044B POBLON 5/8” 2-3/4” 2” 1/4" 4 ft
SCRD0844BBLUE Acetal Blue 1/2” 2-3/4” 2” 1/4" 4, 8 or 10 ft
SCRAMD0844B Metal Detectable Acetal Blue 1/2” 2-3/4” 2” 1/4" 4 ft
SCRD1044BBLUE Acetal Blue 5/8” 2-3/4” 2” 1/4" 4, 8 or 10 ft
SCRAMD1044B Metal Detectable Acetal Blue 5/8” 2-3/4” 2” 1/4" 4 ft
OTHER SIZES & MATERIALS AVAILABLE UPON REQUEST

It is the responsibility of the user to test and approve the metal detection of this product due to variations in metal detection systems and required sensitivity settings.
