POBCO AllwoodMount and AllplasticMount Bearings
Pillowblock
Available in a variety of POBCO Plastics including POBCO Ultra-D (UHMW), POBCO Plus (Food Grade Fluid Lube-Filled UHMW) and POBCO-B Wood Bearing Material.

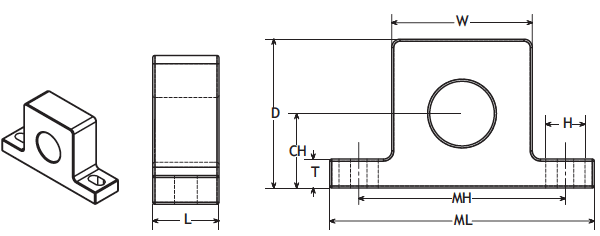

Pillow Block Mount
Also see:
ParaMount Pillow Blocks
TriMount Pillow Blocks
Speed and Load information available,
please inquire.
Pillow Block Mount |
|||||||||
| Part No.** | Shaft Size*** |
CH | MH | D | ML | W | L | T | H |
| PB*-1954-08 | 1/2" | 1-3/16" | 3-3/8" | 2-3/16" | 4-3/4" | 1-3/4" | 1-1/2" | 5/8" | 7/16" x 7/8" |
| PB*-1954-10 | 5/8" | 1-3/16" | 3-3/8" | 2-3/16" | 4-3/4" | 1-3/4" | 1-1/2" | 5/8" | 7/16" x 7/8" |
| PB*-2160-12 | 3/4" | 1-5/16" | 3-3/4" | 2-1/2" | 5-1/4" | 1-7/8" | 1-1/2" | 5/8" | 7/16" x 15/16" |
| PB*-2364-13 | 13/16" | 1-5/16" | 3-3/4" | 2-1/2" | 5-1/2" | 2-1/4" | 1-1/2" | 5/8" | 7/16" x 15/16" |
| PB*-2364-14 | 7/8" | 1-7/16" | 4" | 2-3/4" | 5-1/2" | 2-1/4" | 1-1/2" | 3/4" | 7/16" x 15/16" |
| PB*-2364-15 | 15/16" | 1-7/16" | 4" | 2-3/4" | 5-1/2" | 2-1/4" | 1-1/2" | 3/4" | 7/16" x 15/16" |
| PB*-2364-16 | 1" | 1-7/16" | 4" | 2-3/4" | 5-1/2" | 2-1/4" | 1-1/2" | 3/4" | 7/16" x 15/16" |
| PB*-2776-17 | 1-1/16" | 1-11/16" | 4-3/4" | 3-1/4" | 6-1/4" | 2-3/4" | 1-1/2" | 7/8" | 9/16" x 1-1/16" |
| PB*-2776-18 | 1-1/8" | 1-11/16" | 4-3/4" | 3-1/4" | 6-1/4" | 2-3/4" | 1-1/2" | 7/8" | 9/16" x 1-1/16" |
| PB*-2776-19 | 1-3/16" | 1-11/16" | 4-3/4" | 3-1/4" | 6-1/4" | 2-3/4" | 1-1/2" | 7/8" | 9/16" x 1-1/16" |
| PB*-3080-20 | 1-1/4" | 1-7/8" | 5" | 3-5/8" | 6-1/2" | 2-7/8" | 1-3/4" | 7/8" | 9/16" x 1-1/16" |
| PB*-3080-22 | 1-3/8" | 1-7/8" | 5" | 3-5/8" | 6-1/2" | 2-7/8" | 1-3/4" | 7/8" | 9/16" x 1-1/16" |
| PB*-3080-23 | 1-7/16" | 1-7/8" | 5" | 3-5/8" | 6-1/2" | 2-7/8" | 1-3/4" | 7/8" | 9/16" x 1-1/16" |
| PB*-3286-24 | 1-1/2" | 2" | 5-3/8" | 4" | 7" | 3-3/8" | 1-3/4" | 7/8" | 9/16" x 1-1/16" |
| PB*-3492-28 | 1-3/4" | 2-1/8" | 5-3/4" | 4-1/4" | 7-1/2" | 4" | 2" | 7/8" | 9/16" x 1-1/16" |
| PB*-36100-31 | 1-15/16" | 2-1/4" | 6-1/4" | 4-1/2" | 8" | 4-1/4" | 2" | 7/8" | 11/16" x 1-3/16" |
| PB*-40108-32 | 2" | 2-1/2" | 6-3/4" | 5" | 8-3/4" | 4-3/4" | 2" | 1" | 11/16" x 1-5/16" |
| PB*-40108-35 | 2-3/16" | 2-1/2" | 6-3/4" | 5" | 8-3/4" | 4-3/4" | 2" | 1" | 11/16" x 1-5/16" |
| PB*-44120-36 | 2-1/4" | 2-3/4" | 7-1/2" | 5-1/4" | 9-1/2" | 5-1/2" | 2-1/2" | 1" | 11/16" x 1-5/16" |
| PB*-44120-38 | 2-3/8" | 2-3/4" | 7-1/2" | 5-1/4" | 9-1/2" | 5-1/2" | 2-1/2" | 1" | 11/16" x 1-5/16" |
| PB*-44120-39 | 2-7/16" | 2-3/4" | 7-1/2" | 5-1/4" | 9-1/2" | 5-1/2" | 2-1/2" | 1" | 11/16" x 1-5/16" |
These bearings are designed to interchange with most conventional mounts. |
|||||||||
* Please Specify Bearing Material
** See Properties of POBCO Materials to complete part number,
for two piece sphere, add suffix -TP before completing part number.
*** Any Shaft Size Is Available Up To The Maximum Listed Size For Each Amount
Materials must be specified - Specify Loads, Speeds and Operting Conditions

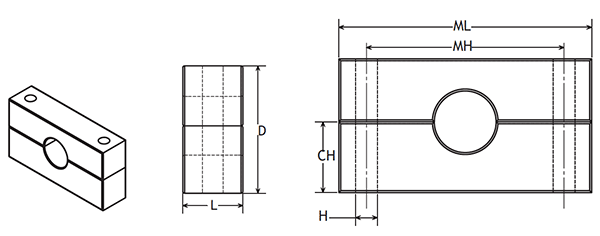

Two Piece Pillow Block Mount
Speed and Load information available,
please inquire.
Two Piece Pillow Block Mount |
|||||||
| Part No.** | Shaft |
CH |
MH |
D |
ML |
L |
H |
| PBTP*-1954-08 | 1/2" | 1-3/16" | 3-3/8" | 2-3/16" | 4-3/4" | 1-1/2" | 7/16" |
| PBTP*-1954-10 | 5/8" | 1-5/16" | 3-3/8" | 2-3/16" | 4-3/4" | 1-1/2" | 7/16" |
| PBTP*-2160-12 | 3/4" | 1-5/16" | 3-3/4" | 2-1/2" | 5-1/4" | 1-1/2" | 7/16" |
| PBTP*-2364-14 | 7/8" | 1-7/16" | 4" | 2-3/4" | 5-1/2" | 1-1/2" | 7/16" |
| PBTP*-2364-15 | 15/16" | 1-7/16" | 4" | 2-3/4" | 5-1/2" | 1-1/2" | 7/16" |
| PBTP*-2364-16 | 1" | 1-7/16" | 4" | 2-3/4" | 5-1/2" | 1-1/2" | 7/16" |
| PBTP*-2776-17 | 1-1/16" | 1-11/16" | 4-3/4" | 3-1/4" | 6-1/4" | 1-1/2" | 9/16" |
| PBTP*-2776-18 | 1-1/8" | 1-11/16" | 4-3/4" | 3-1/4" | 6-1/4" | 1-1/2" | 9/16" |
| PBTP*-2776-19 | 1-3/16" | 1-11/16" | 4-3/4" | 3-1/4" | 6-1/4" | 1-1/2" | 9/16" |
| PBTP*-3080-20 | 1-1/4" | 1-7/8" | 5" | 3-5/8" | 6-1/2" | 1-3/4" | 9/16" |
| PBTP*-3080-23 | 1-7/16" | 1-7/8" | 5" | 3-5/8" | 6-1/2" | 1-3/4" | 9/16" |
| PBTP*-3286-24 | 1-1/2" | 2" | 5-3/8" | 4" | 7" | 1-3/4" | 9/16" |
| PBTP*-3492-28 | 1-3/4" | 2-1/8" | 5-3/4" | 4-1/4" | 7-1/2" | 2" | 9/16" |
| PBTP*-36100-31 | 1-15/16" | 2-1/4" | 6-1/4" | 4-1/2" | 8" | 2" | 11/16" |

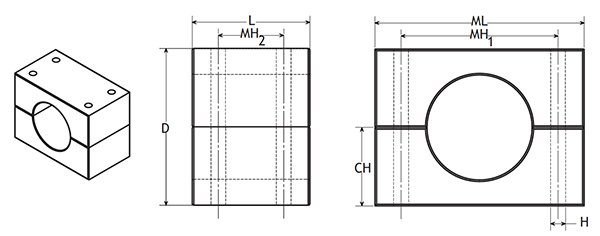

Two Piece Pillow Block Mount
Speed and Load information available,
please inquire.
Two Piece Pillow Block Mount |
|||||||||
Part No.** |
Max |
CH |
MH1 |
MH2 |
D |
ML |
L |
H |
Qty. |
| PBTP*-3652 | 2-1/2" | 2-1/4" | 3-1/4" | *** | 4-1/2" | 4-1/2" | 1-3/4" | 9/16" | 2 |
| PBTP*-3660 | 3" | 2-1/4" | 3-3/4" | *** | 4-1/2" | 5" | 1-3/4" | 9/16" | 2 |
| PBTP*-4068 | 3-1/2" | 2-1/2" | 4-1/4" | 1-1/2" | 5" | 6-1/2" | 3" | 9/16" | 4 |
| PBTP*-4896 | 4" | 3" | 6" | 2-1/2" | 6" | 8" | 4-1/2" | 9/16" | 4 |
