POBCO Guide Rail Brackets

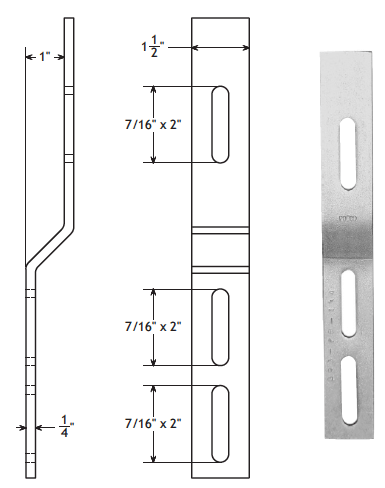

Heavy Duty Fixed Brackets (8 Choices)
Brackets are available straight or with 1/4", 3/4", and 1" fixed offsets.
Bracket is 1/4" thick x 1-1/2" wide.
All attaching hardware including 3/8" carriage and hex bolts are
available only by request.
Click here for: Bracket & Guide Rail Combo Examples
|
Brackets Adaptable With Most Guide/Chain
|
||||||||||||||||||||

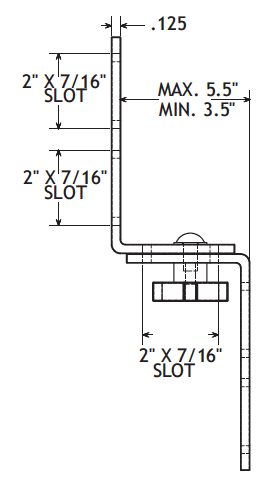

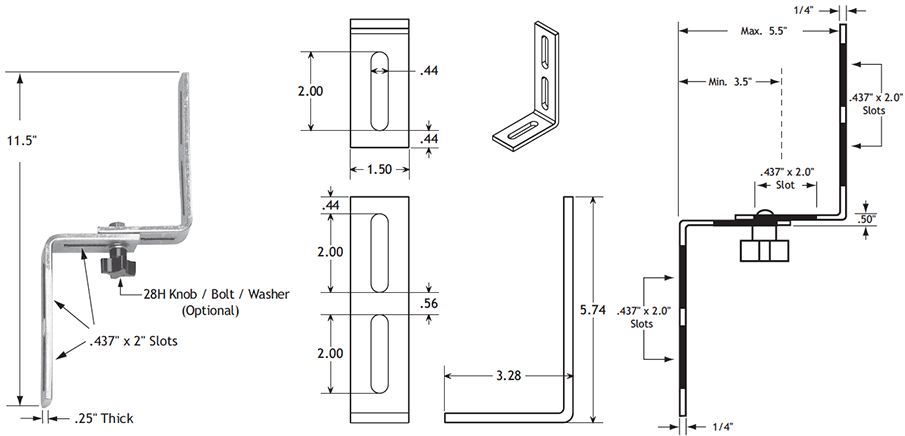

POBCO Stainless Steel Guide Rail Brackets (1/8" inch thick)
Most POBCO Guide Rail Assemblies can be attached to our Stainless Steel Guide Rail Bracket using
our #28 or #20 Plastic Clamping Knob and Hardware.
|
Furnished with #20 Knob and Hardware (#20C)
|
||||||||||||

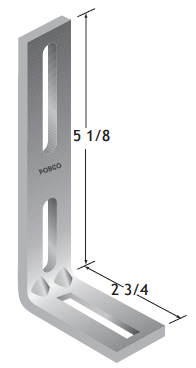

POBCO Stainless Steel Guide Rail Brackets
(Heavy Duty 1/4" thick 316 S.S.)
Part No. GRB-PB-SS
316 Stainless Steel Guide Bracket

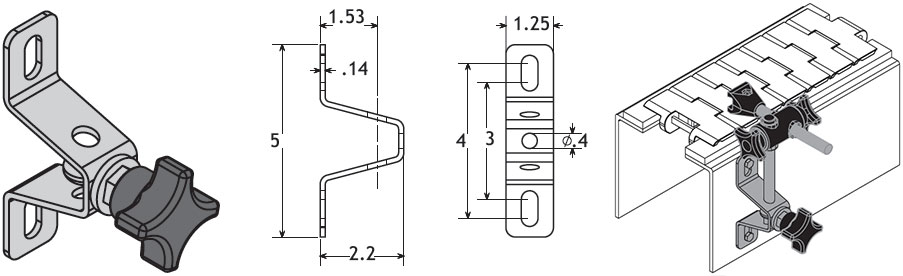

POBCO Stainless Steel Rod Mount Bracket
with Black Plastic and SS Eyebolt
| Part No. | Rod |
| RMB2SS | 1/2" |

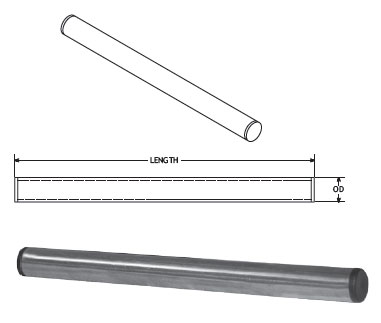

POBCO 304SS Hollow Mounting Rods
with Black End Caps Both Ends
 |
|
