POBCO Plastic "U" Handles
Can be used with Lexan and Plexiglas plastics (see Machine Guards)

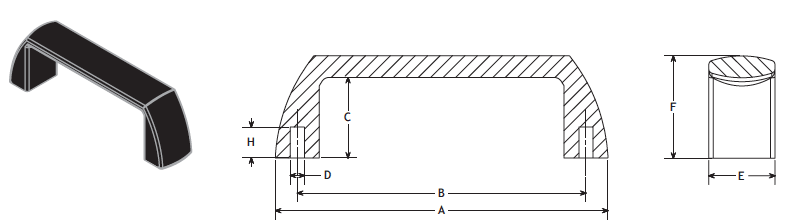

Dimensions in: Inches |
|||||||||||||
Part Number |
E |
B |
D |
F |
C |
H |
A |
||||||
| 8300847 | 1.02 | 4.13 | 1/4-20 | 1.46 | 1.14 | .35 | 4.76 | ||||||
| 8330874 | 1.02 | 4.33 | 1/4-20 | 1.57 | 1.26 | .35 | 5.24 | ||||||
| 8330875 | 1.02 | 4.61 | 5/16-18 | 1.57 | 1.26 | .35 | 5.24 | ||||||
Dimensions in: Millimeters |
|||||||||||||
Part Number |
E |
B |
D |
F |
C |
H |
A |
||||||
| 6333010 | 26 | 105 | M6 x 1.0 | 37 | 29 | 9 | 121 | ||||||
| 6333020 | 26 | 110 | M6 x 1.0 | 40 | 32 | 9 | 133 | ||||||
| 6333030 | 26 | 117 | M8 x 1.25 | 40 | 32 | 9 | 133 | ||||||

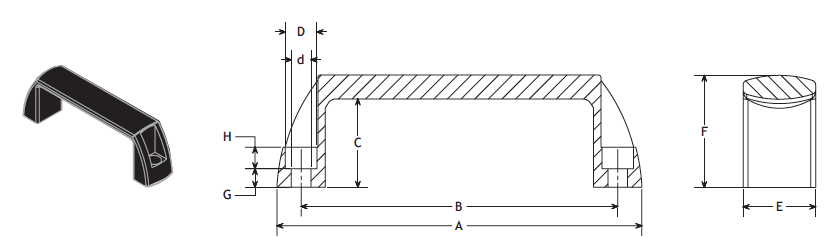

Dimensions in: Inches |
|||||||||||||||
Part Number |
E |
B |
d |
D |
F |
C |
G |
H |
A |
||||||
| 6333150 | .83 | 3.68 | .256 | .41 | 1.42 | 1.18 | .24 | .28 | 4.41 | ||||||
| 6333100 | 1.02 | 4.61 | .335 | .51 | 1.61 | 1.34 | .24 | .35 | 5.47 | ||||||
| 6333210 | 1.06 | 5.20 | .335 | .51 | 1.77 | 1.46 | .24 | .35 | 6.14 | ||||||
Specifications:
Body: Thermoplastic, glass fiber reinforced matte finish
Part number designates the color black.
Special colors (Orange, Grey, White, Red) are available upon request.
Information:
The shape of this handle has good ergonomic features.
