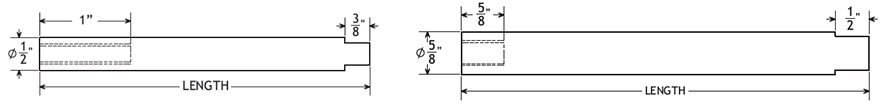

POBCO Stainless Steel Support Rods
Stainless Steel Support Rods are made of 303 stainless steel. They can be used as vertical or horizontal supports on conveyor systems. One end has an internal thread suitable for POBCO clips or bolts.
 |  |
1/2" Support Rod |
||||||
| Material | Thread | 4" Long | 6" Long | 8" Long | 10" Long | 16" Long |
| Stainless Steel | 5/16" - 18 | SSR0518L4 | SSR0518L6 | SSR0518L8 | SSR0518L10 | SSR0518L16 |
| Stainless Steel | 3/8" - 16 | SSR0316L4 | SSR0316L6 | SSR0316L8 | SSR0316L10 | SSR0316L16 |
5/8" Support Rod |
|||||||
| Material | Thread | 4" Long | 6" Long | 10" Long | 12" Long | 16" Long | |
| Stainless Steel | 5/16" - 18 | SSR051810L4 | SSR051810L6 | SSR051810L10 | SSR051810L12 | SSR051810L16 | |
| Stainless Steel | 3/8" - 16 | SSR031610L4 | SSR031610L6 | SSR031610L10 | SSR031610L12 | SSR031610L16 | |
NOTE:
- Shafts with 5/16" - 18 Thread are used with CSS-2424 Clamp (See Rail Clamps)
- Shafts with 3/6" - 16 Thread are used with CSS-Double & CSS-Triple Clamp (See Rail Clamps)
- See clip selection in Guide Rail Clips/Connectors

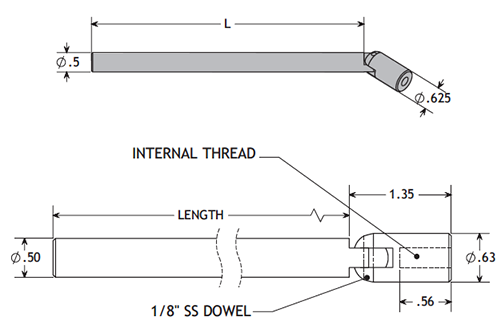

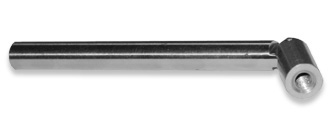

POBCO Pivot End Adjusting Rod
Pivot End Adjusting Rods are made of 303 stainless steel. The jointed ends have an internal thread of 5/16-18 and allow for POBCO clips or threaded bolts.
Pivot ends allow these rods to support rails around curves and bends of conveyor systems.
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

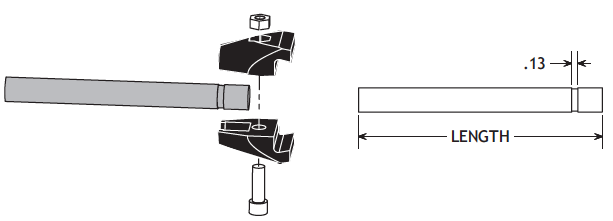

POBCO Rod Ends |

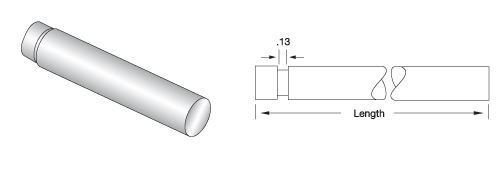

POBCO Adjusting Rod for Rod Ends |
||||||||||||||||||||||||||||||||||||||||||||
PVG02001Fits with Flat Bottom |
PVG01912Fits with 1/2" dia |
|
|||||||||||||||||||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||||||||||||||||||||

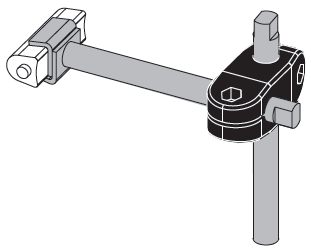

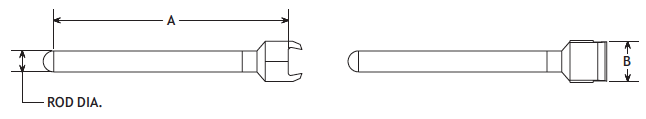

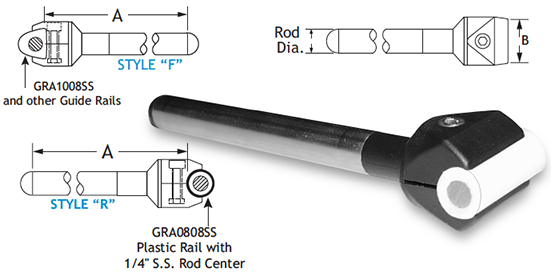

POBCO Stainless Steel Support Rods
with reinforced polyamide clip end (stainless rods are hollow)
|
|
Clamp for Guide Rail GRA-0808-SS or any 1/2" diameter material.
