POBCO Heavy Duty Plastic Leveling Mounts
Base Diameter = 5"
Glass Filled black nylon base with steel and stainless threads. Inch & Metric Sizes. Pop out style lag holes.

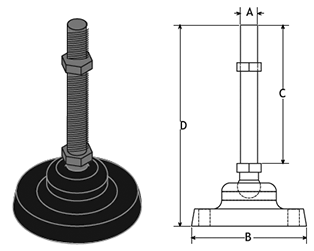

POBCO Part # |
POBCO Part # |
Thread |
Base Dia. |
Thread Length |
Total Height |
Hex Nut |
Max Load |
STEEL |
STAINLESS |
(A) |
(B) |
( C ) |
(D) |
Size |
Lbs |
| PBNYLC56 | PBNYLC56SS | 5/8-11 | 5" | 6" | 8-1/4" | 1-1/16" | 10000 |
| PBNYLC58 | PBNYLC58SS | 5/8-11 | 5" | 8" | 10-1/4" | 1-1/16" | 10000 |
| PBNYLC510 | PBNYLC510SS | 5/8-11 | 5" | 10" | 12-1/4" | 1-1/16" | 10000 |
| PBNYLD56 | PBNYLD56SS | 3/4-10 | 5" | 6" | 8-1/4" | 1-1/16" | 10000 |
| PBNYLD58 | PBNYLD58SS | 3/4-10 | 5" | 8" | 10-1/4" | 1-1/16" | 10000 |
| PBNYLD510 | PBNYLD510SS | 3/4-10 | 5" | 10" | 12-1/4" | 1-1/16" | 10000 |
| PBNYLE56 | PBNYLE56SS | 1-8 | 5" | 6" | 8-1/4" | 1-3/8" | 10000 |
| PBNYLE58 | PBNYLE58SS | 1-8 | 5" | 8" | 10-1/4" | 1-3/8" | 10000 |
| PBNYLE510 | PBNYLE510SS | 1-8 | 5" | 10" | 12-1/4" | 1-3/8" | 10000 |
| PBNYLF56 | PBNYLF56SS | 1-1/8-7 | 5" | 6" | 8-1/4" | 1-3/8" | 10000 |
| PBNYLF58 | PBNYLF58SS | 1-1/8-7 | 5" | 8" | 10-1/4" | 1-3/8" | 10000 |
| PBNYLF510 | PBNYLF510SS | 1-1/8-7 | 5" | 10" | 12-1/4" | 1-3/8" | 10000 |
| PBNYLG56 | PBNYLG56SS | 1-1/4-7 | 5" | 6" | 8-1/4" | 1-7/8" | 10000 |
| PBNYLG58 | PBNYLG58SS | 1-1/4-7 | 5" | 8" | 10-1/4" | 1-7/8" | 10000 |
| PBNYLG510 | PBNYLG510SS | 1-1/4-7 | 5" | 10" | 12-1/4" | 1-7/8" | 10000 |
| PBMNYLC56 | PBMNYLC56SS | M16 | 5" | 6" | 8-1/4" | 1-1/16" | 10000 |
| PBMNYLC58 | PBMNYLC58SS | M16 | 5" | 8" | 10-1/4" | 1-1/16" | 10000 |
| PBMNYLC510 | PBMNYLC510SS | M16 | 5" | 10" | 12-1/4" | 1-1/16" | 10000 |
| PBMNYLD56 | PBMNYLD56SS | M20 | 5" | 6" | 8-1/4" | 1-1/16" | 10000 |
| PBMNYLD58 | PBMNYLD58SS | M20 | 5" | 8" | 10-1/4" | 1-1/16" | 10000 |
| PBMNYLD510 | PBMNYLD510SS | M20 | 5" | 10" | 12-1/4" | 1-1/16" | 10000 |
| PBMNYLE56 | PBMNYLE56SS | M24 | 5" | 6" | 8-1/4" | 1-3/8" | 10000 |
| PBMNYLE58 | PBMNYLE58SS | M24 | 5" | 8" | 10-1/4" | 1-3/8" | 10000 |
| PBMNYLE510 | PBMNYLE510SS | M24 | 5" | 10" | 12-1/4" | 1-3/8" | 10000 |
| PBMNYLF56 | PBMNYLF56SS | M30 | 5" | 6" | 8-1/4" | 1-3/8" | 10000 |
| PBMNYLF58 | PBMNYLF58SS | M30 | 5" | 8" | 10-1/4" | 1-3/8" | 10000 |
| PBMNYLF510 | PBMNYLF510SS | M30 | 5" | 10" | 12-1/4" | 1-3/8" | 10000 |
