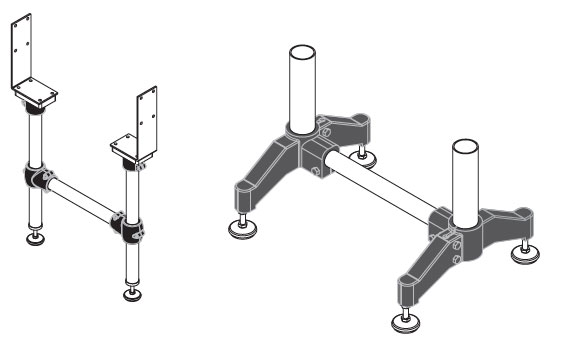

POBCO Plastic Support Bases (2 or 3 legs)

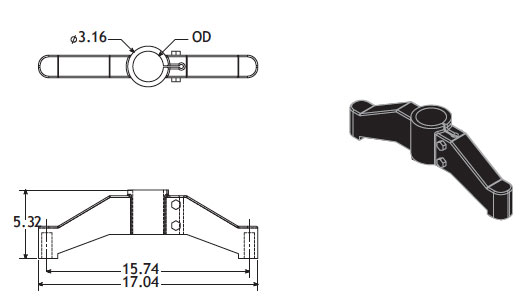

Bipod Base
Materials: Reinforced polyamide with stainless steel fasteners and brass inserts.
 |
Bipod Base Part Number |
Fits Type |
OD |
Insert Thread |
| PB2L1.50M16 |
1-1/2” pipe |
1.90 |
16mm |
| PB2LT2.0M16 |
2” tube |
2.00 |
16mm |
| PB2L2.0M16 |
2” pipe |
2.38 |
16mm |
|

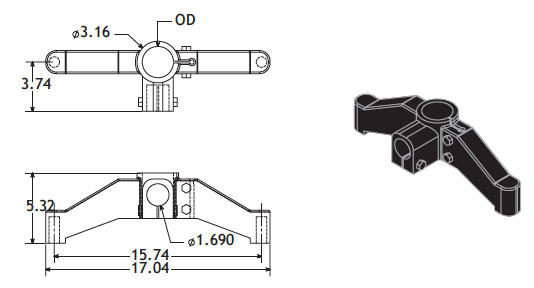

Bipod Base Cross-Tie Version
Reinforced polyamide with stainless steel fasteners and brass inserts.
 |
Cross-Tie Version Part Number |
Fits Type |
OD |
Insert Thread |
| PCT2L1.50M16 |
1-1/2” pipe |
1.90 |
16mm |
| PCT2LT2.0M16 |
2” tube |
2.00 |
16mm |
| PCT2L2.0M16 |
2” pipe |
2.38 |
16mm |
|

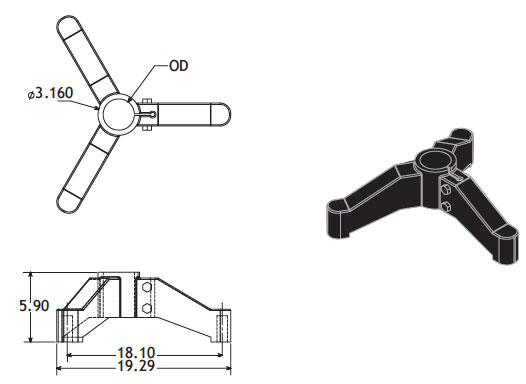

Tripod Base Cross-Tie Version
Materials: Reinforced polyamide with stainless steel fasteners and brass inserts.
 |
Tripod Base Part Number |
Fits Type |
OD |
Insert Thread |
| PT3L1.50M16 |
1-1/2” pipe |
1.90 |
16mm |
| PT3LT2.0M16 |
2” tube |
2.00 |
16mm |
| PT3L2.0M16 |
2” pipe |
2.38 |
16mm |
|
