POBCO Paramount® and Trimount® Center Flanges
Trimount 2-Bolt Center Flanges
Inner Spherical Bearings are available in a variety of POBCO Plastics including Ultra-D (UHMWPE),
Plus (Food Grade Lube-filled UHMWPE), Nylon, Delrin® and POBCO-B Wood Bearing Material.
Housing Materials:
Zinc Plated Steel (standard)
304 Stainless Steel (add "SS" to end of part #)
These mounting dimensions are the same as similar mounts manufactured by many major producers of anti-friction and direct journal contact bearings.
Click here for: Sperical Bearing Inserts
· Indicates Most Common Stainless Steel Mounts

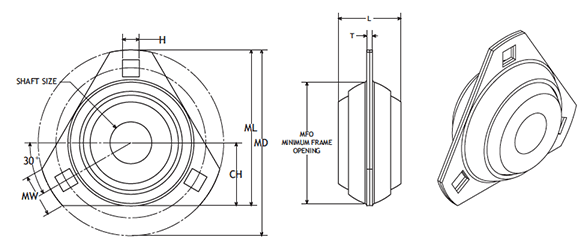

ParaMount Triangular Center Flanges - 40 mm (1.575") |
|||||||||||
Sphere |
Bolt |
MD |
L |
CH |
ML |
MW |
MFO |
H |
T |
Shaft |
Part |
| 40 mm (1.575") |
2-1/2" | 3-3/16" | 1-1/8" | 1-1/8" | 2-23/32" | 13/16" | 1-15/16" | 9/32" Square | .150" | 1/2" 9/16" 5/8" 11/16" 7/8" |
·TCF40*-08 ·TCF40*-09 ·TCF40*-10 ·TCF40*-11 ·TCF40*-14 |
ParaMount Triangular Center Flanges - 47 mm (1.850") |
|||||||||||
Sphere |
Bolt |
MD |
L |
CH |
ML |
MW |
MFO |
H |
T |
Shaft |
Part |
| 47 mm (1.850") |
2-13/16" | 3-3/16" | 1-1/4" | 1-5/16" | 3" | 1/16" | 2-3/16" | 11/32" Square | .166" | 3/4" 1" |
·TCF47*-12 ·TCF47*-16 |
ParaMount Triangular Center Flanges - 52 mm (2.047") |
|||||||||||
Sphere |
Bolt |
MD |
L |
CH |
ML |
MW |
MFO |
H |
T |
Shaft |
Part |
| 52 mm (2.0470") |
3" | 3-3/4" | 1-1/2" | 1-3/8" | 3-1/8" | 1-3/32" | 2-3/8" | 11/32" Square | .166" | 3/4" 7/8" 15/16" 1" 1-1/8" |
·TCF52*-12 ·TCF52*-14 ·TCF52*-15 ·TCF52*-16 ·TCF52*-18 |
ParaMount Triangular Center Flanges - 62 mm (2.441") |
|||||||||||
Sphere |
Bolt |
MD |
L |
CH |
ML |
MW |
MFO |
H |
T |
Shaft |
Part |
| 62 mm (2.441") |
3-9/16" | 4-7/16" | 1-3/4" | 1-1/2" | 3-11/16" | 1" | 2-13/16" | 13/32" Square | .208" | 1" 1-1/8" 1-3/16" 1-1/4" 1-1/2" |
TCF62*-16 TCF62*-18 TCF62*-19 TCF62*-20 TCF62*-24 |
ParaMount Triangular Center Flanges - 72 mm (2.835") |
|||||||||||
Sphere |
Bolt |
MD |
L |
CH |
ML |
MW |
MFO |
H |
T |
Shaft |
Part |
| 72 mm (2.835") |
3-15/16" | 5" | 1-3/4" | 1-3/4" | 4-5/32" | 1-17/64" | 3-3/16" | 13/32" Square | .208" | 1-1/4" 1-5/16" 1-3/8" 1-7/16" 1-7/8" |
TCF72*-20 TCF72*-21 TCF72*-22 TCF72*-23 TCF72*-30 |
Paramount 2-Bolt Center Flanges
Inner Spherical Bearings are available in a variety of
POBCO Plastics including Ultra-D (UHMWPE),
Plus (Food Grade Lube-filled UHMWPE), Nylon,
Delrin® and POBCO-B Wood Bearing Material.
Housing Materials:
Zinc Plated Steel (standard)
304 Stainless Steel (add "SS" to end of part #)
These mounting dimensions are the same as similar mounts manufactured
by many major producers of anti-friction and direct journal contact bearings.
· Indicates Most Common Stainless Steel Mounts

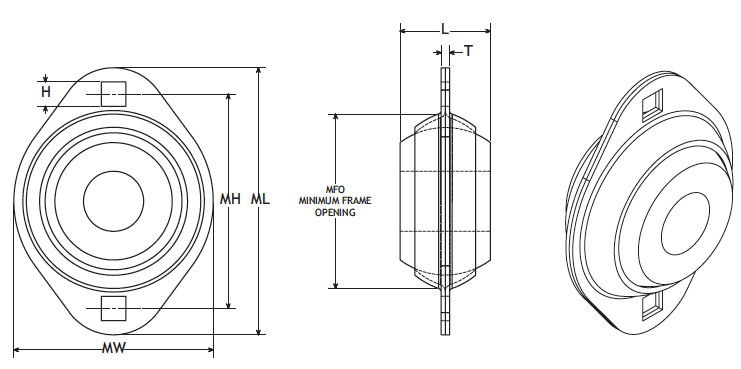

ParaMount 2-Bolt Center Flanges - 40 mm (1.575") |
|||||||||||
Sphere |
MH |
ML |
MW |
L |
MFO |
H |
T |
Shaft |
Part |
||
| 40 mm (1.575") |
2-1/2" | 3-3/16" | 2-5/16" | 1-1/8" | 1-15/16" | 9/32 Square | .150 | 1/2" 9/16" 5/8" 11/16" 7/8" |
·2CF40*-08 ·2CF40*-09 ·2CF40*-10 ·2CF40*-11 ·2CF40*-14 |
||
ParaMount 2-Bolt Center Flanges - 47 mm (1.850") |
|||||||||||
Sphere |
MH |
ML |
MW |
L |
MFO |
H |
T |
Shaft |
Part |
||
| 47 mm (1.850") |
2-13/16" | 3-9/16" | 2-5/8" | 1-1/4" | 2-3/16" | 11/32 Square | .166" | 3/4" 1" |
·2CF47*-12 ·2CF47*-16 |
||
ParaMount 2-Bolt Center Flanges - 52 mm (2.047") |
|||||||||||
Sphere |
MH |
ML |
MW |
L |
MFO |
H |
T |
Shaft |
Part |
||
| 52 mm (2.0470") |
3" | 3-3/4" | 2-51/64" | 1-1/2" | 2-3/8" | 11/32 Square | .166" | 3/4" 7/8" 15/16" 1" 1-1/8" |
·2CF52*-12 ·2CF52*-14 ·2CF52*-15 ·2CF52*-16 ·2CF52*-18 |
||
ParaMount 2-Bolt Center Flanges - 62 mm (2.441") |
|||||||||||
Sphere |
MH |
ML |
MW |
L |
MFO |
H |
T |
Shaft |
Part |
||
| 62 mm (2.441") |
3-9/16" | 4-7/16" | 3-5/16" | 1-3/4" | 2-13/16" | 13/32" Square | .208" | 1" 1-1/8" 1-3/16" 1-1/4" 1-1/2" |
2CF62*-16 2CF62*-18 2CF62*-19 2CF62*-20 2CF62*-24 |
||
ParaMount 2-Bolt Center Flanges - 72 mm (2.835") |
|||||||||||
Sphere |
MH |
ML |
MW |
L |
MFO |
H |
T |
Shaft |
Part |
||
| 72 mm (2.835") |
3-15/16" | 4-15/16" | 3-11/16" | 1-3/4" | 3-3/16" | 13/32" Square | .208" | 1-1/4" 1-5/16" 1-3/8" 1-7/16" 1-3/4" |
2CF72*-20 2CF72*-21 2CF72*-22 2CF72*-23 2CF72*-28 |
||
* Please Specify Bearing Material
** See Properties of POBCO Materials to complete part number,
for two piece sphere, add suffix -TP before completing part number.
*** Any Shaft Size Is Available Up To The Maximum Listed Size For Each Amount
