POBCO Trimount® 4 Bolt Side Flanges

Metal Mounted Bearings
Inner Spherical Bearings are available in a variety of
POBCO Plastics including Ultra-D (UHMWPE),
Plus (Food Grade Lube-filled UHMWPE), Nylon,
Delrin®
and POBCO-B Wood Bearing Material.

Housing Materials:
Zinc Plated Steel (standard)
304 Stainless Steel (add "SS" to end of part #)

These mounting dimensions are the same as similar mounts manufactured by many major producers of anti-friction and direct journal contact bearings.

Click here for: Sperical Bearing Inserts

· Indicates Most Common Stainless Steel Mounts

TriMount 4-Bolt Side Flanges - 1-11/16" Medium Duty Mount

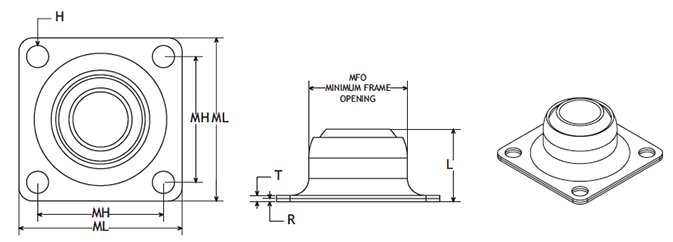

Sphere MH ML L MFO R H T Shaft
Size***
Part
No.**
1-11/16" Sphere
Medium
Duty
Mount
1-15/16" 2-7/16" 1-13/32" 2" 5/32" 17/64" Dia. 1/8" 1/2"
9/16"
5/8"
11/16"
3/4"
13/16"
7/8"
15/16"
1"
·FD*-08
·FD*-09
·FD*-10
·FD*-11
·FD*-12
·FD*-13
·FD*-14
·FD*-15
·FD*-16



TriMount 4-Bolt Side Flanges - 2" Medium Duty Mount

Sphere MH ML L MFO R H T Shaft
Size***
Part
No.**
2" Sphere
Medium
Duty
Mount
2-5/16" 3" 1-9/16" 2-3/8" 1/16" 13/32" Dia. 9/64" 3/4"
13/16"
7/8"
15/16"
1"
1-1/16"
1-1/8"
1-3/16"
1-1/4"
FE*-12
FE*-13
FE*-14
FE*-15
FE*-16
FE*-17
FE*-18
FE*-19
FE*-20



TriMount 4-Bolt Side Flanges - 2-1/2" Heavy Duty Mount

Sphere MH ML L MFO R H T Shaft
Size***
Part
No.**
2-1/2" Sphere
Heavy
Duty
Mount
2-3/4" 3-5/8" 1-13/16" 2-7/8" 1/16" 13/32" Dia. 11/64" 1"
1-1/16"
1-1/8"
1-3/16"
1-1/4"
1-5/16"
1-3/8"
1-7/16"
1-1/2"
1-9/16"
1-5/8"
1-11/16"
1-3/4"
·FF*-16
·FF*-17
·FF*-18
·FF*-19
·FF*-20
·FF*-21
·FF*-22
·FF*-23
·FF*-24
·FF*-25
·FF*-26
·FF*-27
·FF*-28

* Please Specify Bearing Material
** See Properties of POBCO Materials to complete part number, for two piece sphere, add suffix -TP before completing part number.
*** Any Shaft Size Is Available Up To The Maximum Listed Size For Each Amount
