POBCO Polyurethane Roller Covers

Interface Fit Roll Covers

Extend the life of existing rollers with POBCO Polyurethane roller covers These covers function as a protective barrier to both the roller surface and the materials being conveyed. Covers will not scratch or mar product. They are suitable for may applications including systems with steep inclines in which the urethane helps to grip and move the product more efficiently.

POBCO offers the covers in USDA/FDA compliant Safety Orange color, with 85/88 Durometer.

POBCO Polyurethane Roller CoversInstallation Tool for Urethane Roll Covers
#ROLLCOVERTOOL

Installation Tool for Urethane Roll Covers



Standard .062 Wall Thickness

Part Number

OD of Roller

ID of Cover

Length

SCUR1.9

1.900ʼ

1.869”

10 ft.

SCUR2.0

2.000”

1.969”

10 ft.

SCUR2.5

2.500”

2.469”

10 ft.



Standard .125 Wall Thickness

Part Number

OD of Roller

ID of Cover

Length

HCUR1.9

1.900ʼ

1.869”

10 ft.

HCUR2.0

2.000”

1.969”

10 ft.

HCUR2.5

2.500”

2.469”

10 ft.

Other Sizes Available. Please Inquire.

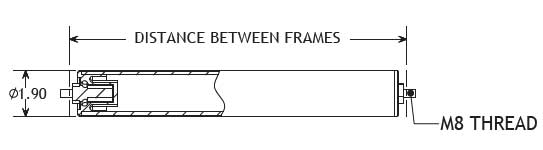

POBCO “RPBBD” Series

Rollers are constructed with 1.90” diameter, schedule 40 white PVC pipe, and self-sealing molded acetal blind bore spring-loaded ball bearings. These are sealed to avoid moisture or bacteria build-up inside rollers. Easy to install. Includes hex nuts.

Between Frame Part Number
10.25" RPBBD10.00
13.00" RPBBD12.75
16.00" RPBBD15.75
18.00" RPBBD17.75
22.00" RPBBD21.75
24.00" RPBBD23.75

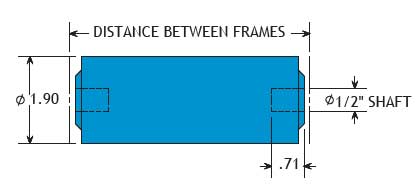

POBCO “RP Solid” Series

Rollers are Blue in color, FDA compliant, solid plastic, 1.90” diameter acetal rollers. Ends have ½” diameter x .71 deep blind bores. This series is the most sanitary option. Supported with “stub shaft” #BP08SSBall.

Between Frame Part Number
10.25" RPBLUEA10.00
13.00" RPBLUEA12.75
16.00" RPBLUEA15.75
18.00" RPBLUEA17.75
22.00" RPBLUEA21.75
24.00" RPBLUEA23.75
RP Solid
