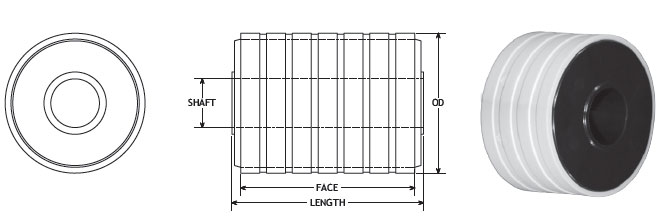

POBCO Rubber Coated Return Rollers for Table Top Chain
Black polyamide rollers coated with grey color 65 shore rubber. Rollers are completely closed and therefore maintain cleanliness.
Quiet operation.
| PART NUMBER | OD | FACE | L | SHAFT “S” |
| RRR24518 | 60mm | 40mm | 41mm | 18mm (11/16”) |
| RRR24520 | 60mm | 40mm | 41mm | 20mm (3/4”) |
| RRR29318 | 60mm | 75mm | 82mm | 18mm (11/16”) |
| RRR29320 | 60mm | 75mm | 82mm | 20mm (3/4”) |
| RRR27618 | 45mm | 75mm | 82mm | 18mm (11/16”) |
| RRR27620 | 45mm | 75mm | 82mm | 20mm (3/4”) |

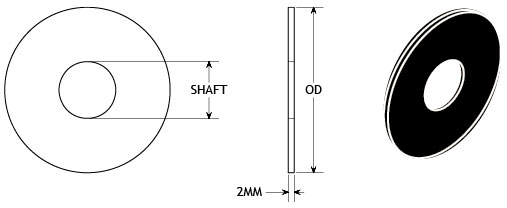

POBCO Black Polypropylene Spacer
To be used with rollers as needed.
| PART NUMBER | OD |
SHAFT “S” |
| TWPP18MM70MM | 70mm | 18mm (11/16”) |
| TWPP20MM70MM | 70mm | 20mm (3/4”) |
| TWPP18MM54MM | 54mm | 18mm (11/16”) |
| TWPP20MM54MM | 54mm | 20mm (3/4”) |

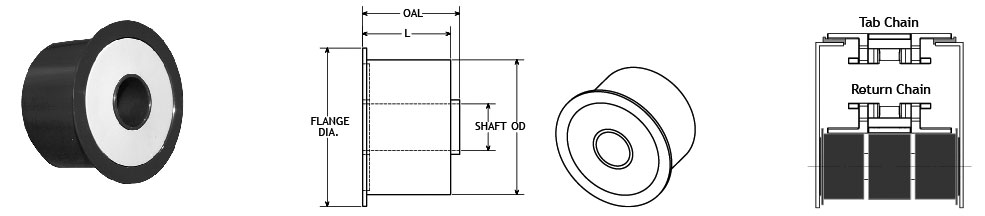

POBCO Return Rollers for Table Top Chain
With or Without Flange
Black polyamide roller with grey cap closure, light weight low cost.
| PART NUMBER | FLANGE DIA. | OD | OAL | L | SHAFT |
| RFR82221 | 70mm | 60mm | 43 | 37.5 | 18mm (11/16”) |
| RFR82222 | 70mm | 60mm | 43 | 37.5 | 20mm (3/4”) |
| RR82225 | none | 60mm | 40.5 | 39.5 | 18mm (11/16”) |
| RR82226 | none | 60mm | 40.5 | 39.5 | 20mm (3/4”) |
| RFR82233 | 70mm | 60mm | 85.5 | 84 | 18mm (11/16”) |
| RFR82234 | 70mm | 60mm | 85.5 | 84 | 20mm (3/4”) |
| RR82245 | none | 60mm | 82 | 80 | 18mm (11/16”) |
| RR82246 | none | 60mm | 82 | 80 | 20mm (3/4”) |

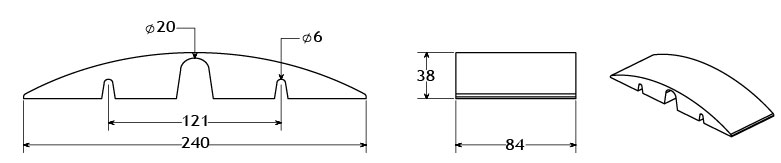

POBCO Chain Return - Self Adjusting Sliding Shoe
Material: Green polyethylene.
Application: For chains 3-1/4” Flight width. Self-Adjustment occurs during return phase at the drive sprocket level.
# PP14833
