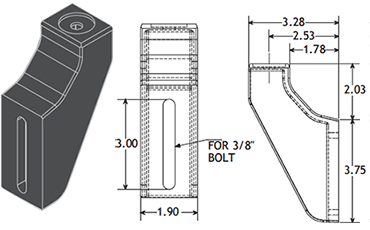

POBCO Side Guide Brackets

Bracket Material:
Polymide; Supplied with 304 SS washer.
Part No. GRB-Plastic1
Side Guide Bracket - Knob and Cap
Knob & Cap Material:
Polymide; Supplied with 304 SS eyebolt,
3/8-16 bolt & washers.
Part No. Shaft Dia.
KA08 1/2"
KA10 5/8"

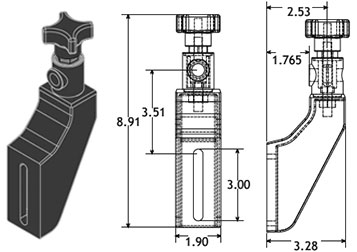

Swivel Bracket
Swivel Bracket Material:
Bracket and adjustable in polyamide; eyebolt, nut, screws and washer in 304 SS; knob in polyamide with nickel plated brass insert.
Part No. DF Shaft
GRB1KA08 1/2"
GRB1KA10 5/8"

Knob: Polyamide Cap: Stainless Steel:
Supplied with stainless steel eyebolt, knob, 3/8-16 bolt, and washers
Part No.
DF Shaft
A
B
C
KA08SS
1/2
3.28
.89
1.61
KA10SS
5/8
3.28
.89
1.61
KA08SSMED
1/2
4.19
1.81
2.52
KA10SSMED
5/8
4.19
1.81
2.52
KA08SSTALL
1/2
7.50
4.80
5.80
KA10SSTALL
5/8
6.05
3.22
4.32

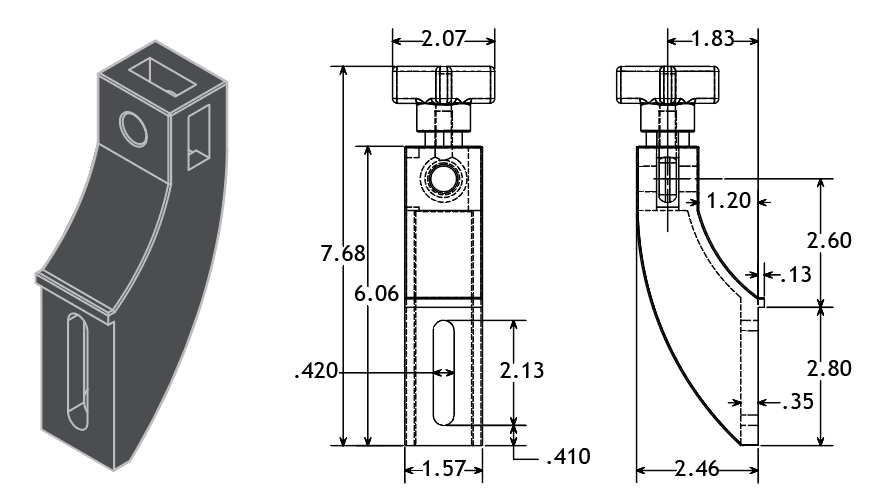

Side Guide Bracket - Adjustable
Adjustable Bracket Bracket Material:
Bracket and adjustable in polyamide; eyebolt, nut, screws and washer in 304 SS; knob in polyamide with nickel plated brass insert.
Part No. DF Shaft
PP13696LG 1/2"
PP13769LG 5/8"

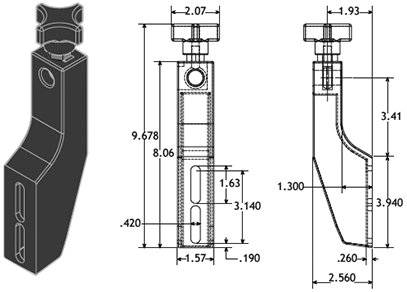

Side Guide Bracket With Eye-Bolt
Bracket with Eye-Bolt Bracket Material:
Polymide; eyebolt and washer in 304 SS; knob in polyamide with nickel plated brass insert.
Part No. DF Shaft
PP-13696 1/2"
PP-13769 5/8"

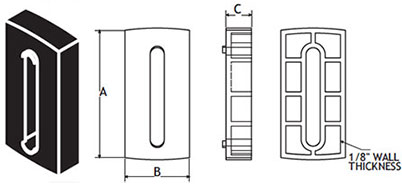

Spacer for GRBPlastic1
Spacer for GRBPlastic1
Material: polyamide
Allows efficient mounting of several spacers together to obtain wider bracket or guide rail distance.
Part No. A B C
BSSU 3.750 1.900 .750
Spacer for Part # PP-13696
Material: polyamide
Allows for efficient mounting of several spacers together to obtain wider bracket or guide rail distance.
Part No. A B C
PP13399 2.95 1.97 .625

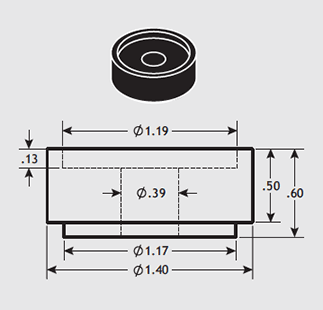

Spacer for GRBPlastic1
BTSU
Material: Black UHMW

For Use with KA08

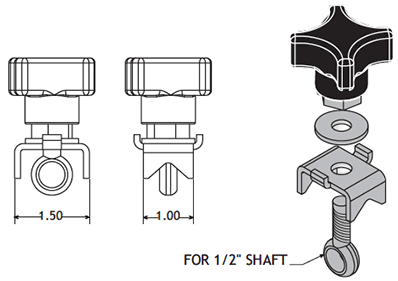

PP641TK12

Part No. Material
PP641TK12 Stainless with Black Polyamide Knob

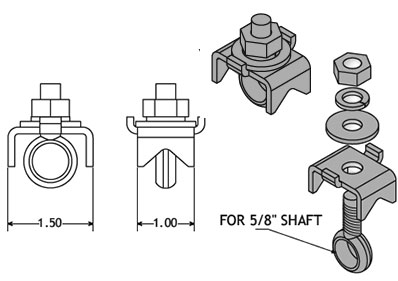

PP641TN58

Part No. Material
PP641TN58 All Stainless
