POBCO Flat Belt Guides

Flat Belt Guides

UHMW
Part No.
Inches Belt
Width
Metal
Channel
D W T C GD
P1U-12 .71 1.10 .95 1.10 .250 3/4" Dia. B
P1U-16 .71 1.10 .95 1.34 .250 1" Dia. B

Flat Belt Guide

Flat Belt Guide

Also available for 3/16" rail & other dimensions per your drawing

Belt Guide
Ultra-D Flush Edge
CGU-021727 UHMW
CGP-021727 Plus Lube Filled

Belt Guide
Ultra-D Tabbed Edge
CGU-021619 UHMW
CGP-021619 Plus Lube Filled

Belt Guide
Ultra-D Angle
CGU-021625 UHMW
CGP-021625 Plus Lube Filled

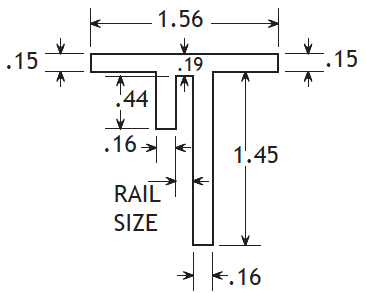

Belt Guide
Ultra-D Center Rail
CGU-0222525 UHMW
CGP-0222525 Plus Lube Filled
