POBCO Captured Chain Guides

Available in a variety of POBCO materials including POBCO Ultra-D (UHMWPE), POBCO Plus (Fluid Lube-Filled UHMWPE), POBCO SRU (Static Reduced UHMWPE), POBCO PTFE (Hi-Temp), POBCO Acetal (Delrin®) and POBCO-B Wood Bearing Material. When ordering, please indicate size of chain. Non-standard sizes & lengths are available.

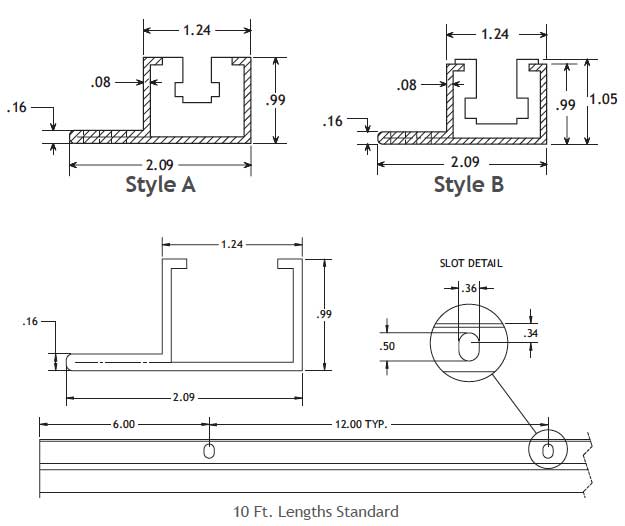

POBCO Metal Mounting Channels are provided with or without pre-punched mounting holes on 12 inch centers. These channels can also be tack-welded into position before the Plastic strips are inserted into the channel. Channels are available in Stainless Steel and Galvanized Steel. POBCO can modify guides for heavy duty side plate chain, metric chain, cotter pin chain and brands of chain not made to Rex specifications. Please tell us your specific chain and brand before ordering.

Click here for: Mounting Channel (Ordered Separately)

Captured Chain Guides - CCU Series

See Mounting Channel

CCU SERIES

UMHW Part No. INCHES Chain Size Mounting Channel Style
A W C T
CCU-35 .17 1.18 .22 .94 ASA 35-1 D A
CCU-40 .30 1.18 .34 .94 ASA 40-1 D A
CCU-50 .36 1.18 .41 .94 ASA 50-1 D A
CCU-60S .47 1.18 .45 .94 ASA 60-1 D B
CCU-60 .47 1.77 .45 1.58 ASA 60-1 E A
CCU-80 .60 1.77 .65 1.58 ASA 80-1 E A
CCU-100 .74 1.77 .77 1.58 ASA 100-1 E A



Flanged Series below available for 40, 50 and 60 Chain.
Flanged Channel allows for side mounting with no interferance with the plastic insert.

Metal Channel Flange Series

Part No.

Material

MCS1317FLNGL120

Galvanized Steel

MCSS1317FLNGL120

Stainless Steel



UHMW Inserts

Chain No.

CCU40L120S3

40

CCU50L120S3

50

CCU60L120S3

60

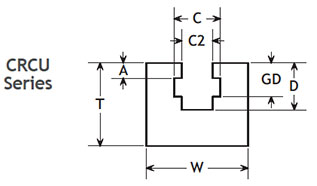

All Plastic Captured Chain Guide

All Plastic Captured Guide

UHMW
Part No.
ANSI
Chain
No.
Inches
W T A GD D C2 C
CRCU-35 35 .79 .88 .17 .32 .40 .22 .39
CRCU-40 40 1.10 1.05 .29 .45 .52 .33 .51
CRCU-50 50 1.50 1.43 .35 .55 .61 .42 .67
CRCU-60 60 1.50 1.85 .47 .70 .80 .49 .78
CRCU-80 80 1.50 2.45 .60 .89 1.19 .65 1.04
CRCU-100 100 1.63 2.45 .74 1.03 1.20 .77 1.135
Captured Chain Guides - CCDU Series

See Mounting Channel

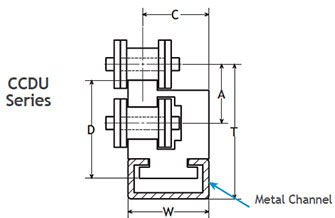

CCDU Series Captured Chain Guides

UHMW
Part No.
Inches Chain
Size
Mounting
Channel
D A W C T
CCDU-35 .770 .67 .79 .57 1.19 ASA 35-1 A
CCDU-40 .986 .59 .79 .65 1.33 ASA 40-1 A
CCDU-50 1.22 .79 .79 .61 1.62 ASA 50-1 A
CCDU-60 1.44 .90 1.10 .79 1.83 ASA 60-1 B

Captured Chain Guide

Mounting Channels are furnished separatley.

Captured Chain Guides

UHMW
Part No.
ANSI
Chain
No.
Inches Approx.
Weight
lbs/ft.
Plastic
& Metal
Mounting
Channel*
D W T GD C
CCU-35A 35 .750 .79 .94 .17 .22 .57 A
CCU-40B 40 .900 1.10 1.13 .29 .33 .98 B
CCU-50C 50 1.175 1.50 1.53 .35 .42 1.70 C
CCU-60C 60 1.600 1.50 1.95 .47 .49 1.92 C
CCU-80C 80 2.195 1.50 2.55 .60 .65 2.23 C
CCU-100E 100 2.500 1.77 2.88 .74 .77 2.50 E
