POBCO Mounting Channels

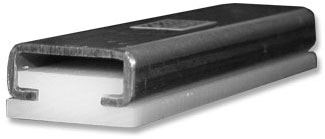

POBCO Mounting Channels allow for fastening the Plastic Guide Rails in place along a conveyor section or lineal plane. These metal channels are either bolted in place using the pre-punched mounting holes on 12" centers, or they are welded in place. Then the Plastic Guide Rail is slid into position and locked at one end only to allow for thermal expansion. The Stainless Steel, Anodized Aluminum and Galvanized Steel Mounting Channels are available in 10 ft. lengths.

A CHANNEL

Plastic Mounting Clip
#CCNMC

Part No.	A Channel Material	Mounting Holes	Centers
MCA-02110	Anodized Aluminum	None
MCA-02111	Anodized Aluminum	.20 Dia.	12 inch
MCS-02112	Galvanized Steel	None
MCS-02113	Galvanized Steel	.20 Dia.	12 inch
MCSS-02114	Stainless Steel	None
MCSS-02115	Stainless Steel	.20 Dia.	12 inch

B CHANNEL

Part No.	B Channel Material	Mounting Holes	Centers
MCS-05150	Galvanized Steel	None
MCS-05151	Galvanized Steel	.20 Dia.	12 inch
MCSS-05152	Stainless Steel	None
MCSS-05153	Stainless Steel	.20 Dia.	12 inch

C CHANNEL

Part No.	C Channel Material	Mounting Holes	Centers
MCS-08210	Galvanized Steel	None
MCS-08211	Galvanized Steel	.20 Dia.	12 inch
MCSS-08212	Stainless Steel	None
MCSS-08213	Stainless Steel	.20 Dia.	12 inch

D CHANNEL

Part No.	D Channel Material	Mounting Holes	Centers
MCS-13170	Galvanized Steel	None
MCS-13171	Galvanized Steel	.20 Dia.	12 inch
MCSS-13172	Stainless Steel	None
MCSS-13173	Stainless Steel	.20 Dia.	12 inch

E CHANNEL

Part No.	E Channel Material	Mounting Holes	Centers
MCS-23260	Galvanized Steel	None
MCSS-23261	Stainless Steel	None
