POBCO Roller Chain Wear Strip

Available in a variety of POBCO materials including POBCO Ultra-D (UHMWPE), POBCO Plus (Fluid Lube-Filled UHMWPE), POBCO SRU (Static Reduced UHMWPE), POBCO PTFE (Hi-Temp), POBCO Acetal (Delrin®) and POBCO-B Wood Bearing Material. When ordering, please indicate size of chain. Non-standard sizes & lengths are available.


POBCO can modify guides for heavy duty side plate chain, metric chain, cotter pin chain and brands of chain not made to Rex specifications. Please tell us your specific chain and brand before ordering.

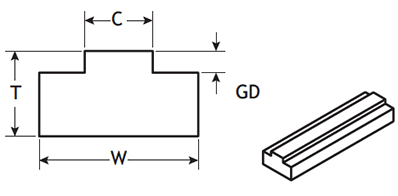

Single Strand Roller Chain Wear Strip

UHMW
Part No.
ANSI
Chain
No.
Inches
W T C GD
RCU-25 25 .78 .59 .10 .09
RCU-35 35 .78 .59 .17 .10
RCU-40 40 .78 .59 .29 .10
RCU-50 50 .78 .59 .35 .12
RCU-60 60 1.10 .59 .47 .15
RCU-80 80 1.34 .71 .60 .18
RCU-100 100 1.61 1.00 .72 .26
RCU-120 120 2.01 1.25 .96 .31
RCU-140 140 2.17 1.50 .96 .36
RCU-160 160 2.61 1.50 1.21 .42
RCU-180 180 2.88 1.50 1.35 .47
Single Strand Roller Chain Wear   Strip

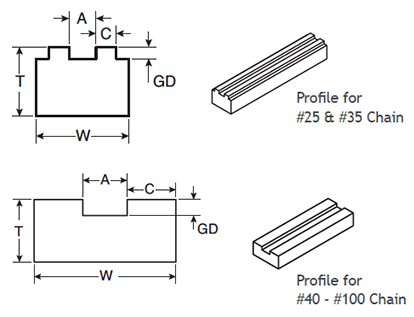

Double Strand Roller Chain Wear Strip

UHMW
Part No.
ANSI
Chain
No.
Inches Approx.
Weight
lbs/ft.
W T C GD A
RCDU-25 25-2 .79 .59 .10 .09 .15 .15
RCDU-35 35-2 .79 .59 .17 .10 .22 .15
RCDU-40 40-2 .85 .59 .29 .10 .27 .16
RCDU-50 50-2 1.07 .59 .35 .12 .42 .21
RCDU-60 60-2 1.34 .59 .47 .15 .49 .25
RCDU-80 80-2 1.75 .71 .60 .18 .55 .44
RCDU-100 100-2 2.125 1.32 .72 .70 .77 1.12

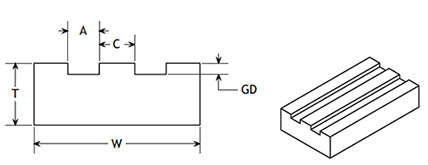

Triple Strand Roller Chain Wear Strip

UHMW
Part No.
ANSI
Chain
No.
Inches
W T C GD A
RCTU-50 50-3 1.79 .59 .35 .12 .37
RCTU-60 60-3 2.25 .59 .47 .15 .42
RCTU-80 80-3 2.90 .71 .60 .18 .55





ANSI Standard Roller Chain Guide - Profile 1

ANSI Standard Roller Chain Guide - PROFILE 1

UHMW
Part No.
ANSI
Chain
No.
Inches Approx.
Weight
lbs/ft.
W T A GD D C1 C2 C
CGCU-25 25 .79 .59   .09 .13 .12   .27 .14
CGCU-35 35 .79 .59   .15 .22 .16   .39 .14
CGCU-40 40 .79 .59   .18 .26 .21   .51 .14
CGCU-50 50 1.10 .71   .24 .35 .28   .67 .24
CGCU-60 60 1.10 .71   .28 .41 .32   .78 .24
CGCU-80 80 1.50 .79   .30 .55 .43   1.04 .35
CGCU-100 100 1.63 .87   .35 .63 .48   1.135 .50

All Plastic Captured Chain Guide - Profile 2

All Plastic Captured Guide - PROFILE 2

UHMW
Part No.
ANSI
Chain
No.
Inches Approx.
Weight
lbs/ft.
W T A GD D C1 C2 C
CRCU-25 25 .79 .88 .10 .20 .24   .15 .27 .25
CRCU-35 35 .79 .88 .17 .32 .40   .22 .39 .25
CRCU-40 40 1.10 1.05 .29 .45 .52   .33 .51 .42
CRCU-50 50 1.50 1.43 .35 .55 .61   .42 .67 .78
CRCU-60 60 1.50 1.85 .47 .70 .80   .49 .78 1.01
CRCU-80 80 1.50 2.45 .60 .89 1.19   .65 1.04 1.34
CRCU-100 100 1.63 2.45 .74 1.03 1.20   .77 1.135 1.66
