POBCO Chain Guides - Tab Design All-in-One


All-in-One CURVED Wear Strip

All-in-One Curved

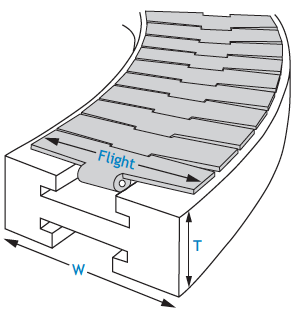

INFORMATION NEEDED TO MAKE TRACK CHAIN GUIDES:
1. Chain No.
2. Chain Style (ie: TAB or BEVEL) see dwg.
3. Flight Width (Chain Width)
4. Track Thickness "T" & Width "W"

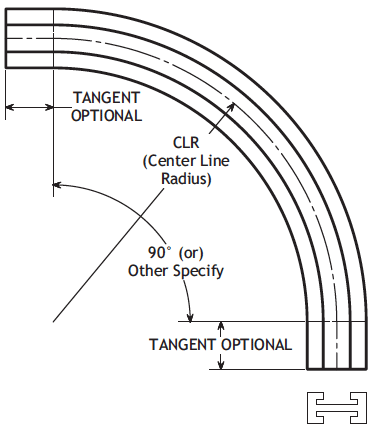

5. Center Line Radius (CLR) ie: 18, 24, 30 etc.
6. Circle segment (90" & 45" curves most common) 30" and larger CLR-please inquire
7. Single or Multiple strands (Flights)
8. Tangents Optional (Other lengths available)
9. Chain Guide Plastic Material and Color
10. Chain Speeds and Operating Conditions per maximum surface speeds listed here
11. Manufacturer of Chain



SUGGESTED MATERIALS Maximum Speeds
“U” ULTRA-D (UMHMW) 100 fpm
“URB” Black REPRO UHMW 100 fpm
“UXC” Blue 350 fpm
"P" Plus (Oil filled UHMW) 300 fpm
“CP” High Wear (filled UHMW) 100 fpm
“MD” Moly Filled Nylon 150 fpm
“NW” Nywear (lube filled nylon) 150 fpm
“GT” Glass Filled PTFE 200 fpm



POBCO All-in-One Tab Chain Guide Standard Data:

Chain Flight Width

Straight Guide Width (W)

2-3/4"
3-1/4"
4-1/2"
6"
7-1/2"
10"
12"
3-1/4"
4"
5"
6-1/2"
8"
10-1/2"
12-1/2"





Chain
Model

POBCO Standard Guide Thickness (T)

879
880
881
882
1701
1873
1874
2"
2"
2"
2 5/8"
2 5/8"
2 5/8"
2 5/8"

Please Specify Thickness
