POBCO Chain Guides - Multiple Sections
Normally furnished in POBCO Ultra-D, POBCO Plus, POBCO Nylon MD and POBCO-B Hardwood
| Chain Series No. |
POBCO Part No.* |

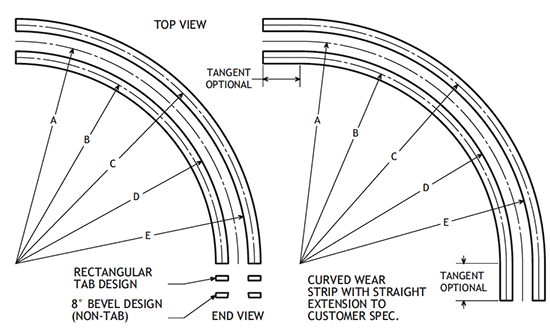

Nominal Corner Radius A |
Bolt Circle | Track Radius | Width W |
Thickness T |
90° set Pieces** |
|||
| Inside B |
outside C |
Inside D |
outside E |
Plastic pcs/set |
Wood pcs/set |
|||||
One Piece Link Chain - Bevel Design Wear Strip - Non-Tab |
||||||||||
| 800 881 |
CWS*-90 30B3 CWS*-90 24B3 CWS*-90 18B3 |
30 24 18 |
28-11/64 22-11/16 16-11/16 |
31-53/64 25-5/16 19-5/16 |
29-3/16 23-3/16 17-3/16 |
30-3/16 24-13/16 18-13/16 |
1-1/2 1 1 |
3/8 3/8 3/8 |
4 2 2 |
4 4 4 |
| 882 | CWS*-90 30B5 CWS*-90 24B5 |
30 24 |
27-29/32 21-29/32 |
32-3/32 26-3/32 |
28-55/64 22-55/64 |
31-9/64 25-9/64 |
1-1/2 1-1/2 |
5/8 5/8 |
4 2 |
4 4 |
One Piece Link Chain - Rectangular Design Wear Strip - Tab |
||||||||||
| 880 TAB 881 TAB |
CWS*-90 30R3 CWS*-90 24R3 CWS*-90 18R3 |
30 24 18 |
28-11/64 22-11/64 16-11/64 |
31-53/64 25-53/64 19-5/16 |
29-1/8 23-1/8 17-1/8 |
30-7/8 24-7/8 18-7/8 |
1-1/2 1-1/2 1-1/2 |
3/8 3/8 3/8 |
4 2 2 |
4 4 4 |
| 882 TAB | CWS*-90 30R5 CWS*-90 24R5 |
30 24 |
27-29/32 21-29/32 |
32-3/32 26-3/32 |
28-55/64 22-55/64 |
31-9/64 25-9/64 |
1-1/2 1-1/2 |
5/8 5/8 |
4 2 |
4 4 |
Base Roller Chain - Rectangular Design Wear Strip |
||||||||||
| 1873 TAB 1874 TAB |
CWS*-90 30R6 CWS*-90 24R6 CWS*-90 18R6 |
30 24 18 |
28-11/64 22-11/64 16-11/64 |
31-53/64 25-53/64 19-53/64 |
29-5/16 23-5/16 17-5/16 |
30-11/16 24-11/16 18-11/16 |
1-1/2 1-1/2 1-1/2 |
3/4 3/4 3/4 |
4 4 2 |
4 4 4 |
| 3873 TAB | CWS*-90 30R7 |
30 | 28-11/64 |
32-5/64 |
29-5/16 | 30-11/16 | 1-1/2 |
3/4 |
4 |
4 |
POBCO B-Wood Curves for Chain Guides
*Please Specify Material
**Number of pieces per set depends upon wear material specified
Other sizes and materials available
