POBCO Captured Chain Guides - Anodized Aluminum

POBCO Anodized Aluminum (6063-T6 alloy) Chain Guides are fitted with POBCO Ultra-D (White UHMW), Ultra-D Mechanical Grade (Green UHMW) or POBCO Plus (Fluid Lube-Filled UHMW), and POBCO Filled PTFE for high heat applications. POBCO Plus significantly reduces friction and extends the life of the chain.

Captured Chain Guide

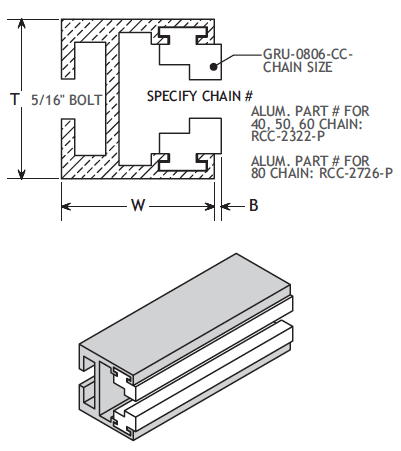

Captured Chain Guides

ANSI
Chain#
T W B Part No.*
40 1-7/16 1-3/8 1/16 GRA-2322-40
50 1-7/16 1-3/8 1/16 GRA-2322-50
60 1-7/16 1-3/8 1/16 GRA-2322-60
80 1-11/16 1-5/8 1/8 GRA-2726-80







Captured Chain Guides

ANSI
Chain#
T W B Part No.*
40 1-22/32 1-3/8 1/16 GRA-2822-40
50 1-22/32 1-3/8 1/16 GRA-2822-50
60 1-22/32 1-3/8 1/16 GRA-2822-60
80 1-31/32 1-5/8 1/8 GRA-3226-80

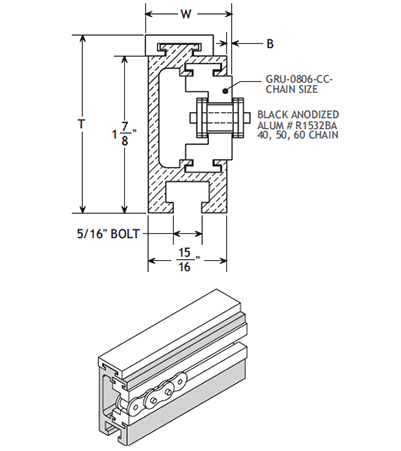

Captured Chain Guides

ANSI
Chain#
T W B Part No.*
40 2-1/8 1-1/31 1/16 GRA-3416-40
50 2-1/8 1-1/31 1/16 GRA-3416-50
60 2-1/8 1-1/31 1/16 GRA3416-60

*Materials must be specified

POBCO Captured Chain Guide Inserts

POBCO Chain Guide Insert #40

POBCO Chain Guide Insert #50

POBCO Chain Guide Insert #60 POBCO Chain Guide Insert #80

#40

#50

#60

#80

Part Number Material
GRU0806CC40 ULTRA-D
GRU0806CC40G Green UHMW
GRP0806CC40 Plus
Part Number Material
GRU0806CC50 ULTRA-D
GRU0806CC50G Green UHMW
GRP0806CC50 Plus
Part Number Material
GRU0806CC60 ULTRA-D
GRU0806CC60G Green UHMW
GRP0806CC60 Plus
Part Number Material
GRU0806CC80 ULTRA-D
GRU0806CC80G Green UHMW
GRP0806CC80 Plus
