POBCO ABS Housings with Bearing Inserts

Molded Bearings to these listed dimensions are available also in PTFE Filled-Delrin (DT) and in Lubricant-Filled-Nylon (MD). To order in these materials, remove the prefix D in the part number (s) and replace with DT or MD.
(Other bearing-grade plastic materials and POBCO-B lubricant-filled wood bearings are available.)
Some sizes listed below.
Many other sizes available with low minimums to buy, please inquire.

ABS Roll End Bearing Housing

Tubing
Outside
Dia.
FD

Pipe
Size

I.D.
metal
Tubing
OD

Length

FT

Part
No.

1.900"
(1-1/2" Pipe)

Sch. 40
Sch. 80

1.610"
1.500"

1-11/32"

5/32"

ABS24P40
ABS24P80

2.375"
(2" Pipe)

Sch. 40
Sch. 80

2.067"
1.939"

1-11/32"

5/32"

ABS32P40
ABS32P80

2.875"
(2-1/2" Pipe)

Sch. 40
Sch. 80

2.469"
2.323"

1-11/32"

5/32"

ABS40P40
ABS40P80

ABS housing and Bearing Inserts can be shipped unassembled. (Please Specify)

ABS Housing

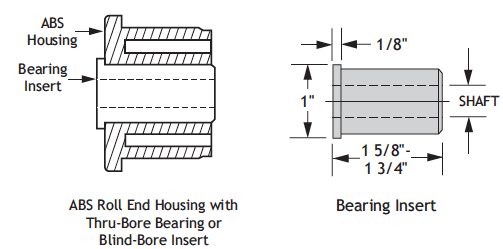

ABS Roll End Housing with Thru-Bore or Blind-Bore Insert Bearing Insert

Shaft
Size*

Thru-Bore Bearing Insert Part Number**

Pobco-B
(Wood)
Lube-Filled

Ultra-D
(UHMW)

Plus
(Lube-Filled UHMW)

Silcone
Filled Nylon

1/4"

TB-04W

TU-04

TP-04

TNS-04

5/16"

TB-05W

TU-05

TP-05

TNS-05

3/8"

TB-06W

TU-06

TP-06

TNS-06

1/2"

TB-08W

TU-08

TP-08

TNS-08

5/8"

TB-10W

TU-10

TP-10

TNS-10

3/4"

TB-12W

TU-12

TP-12

TNS-12

* The above inserts are available for any shaft size up to 3/4" diameter.
** For Blind-Bore inserts add BB to end of Thru-Bore Insert Part Number.
