POBCO Hanger Bearings and Trough Liners

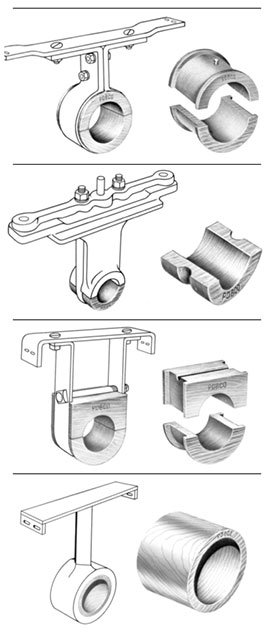

Hanger Bearings and Trough Liners Screw Conveyor Support Station

In general, bearing support stations on screw conveyors must be classified as severe service. The materials handled are often corrosive and abrasive and sometimes moisture laden. Conditions are encountered that can disintegrate conventional bearings in extremely short time while also scoring and pitting the journals.

In contrast, POBCO-B hanger bearings are unaffected by most corrosive materials and work well even under moist conditions. When abrasive materials are being handled, the small amount of particles that reach the bearing surface become embedded in the POBCO-B material without adversely affecting the bearings' performance. These factors allow POBCO-B to handle a wide variety of materials on this equipment.

POBCO-B
hanger bearings are self-lubricating for life. They are ideal for installation in screw conveyor assemblies, where the bearings are usually inaccessible. The long life of POBCO-B bearings and the elimination of excessive shaft wear are major factors in reducing high maintenance costs and periodic shutdowns.

POBCO-B bearings are the quietest bearings made for screw conveyors, whether operating slowly or at an accelerated pace. They eliminate the noisy metal-to-metal sounds inherent is such machinery employing metal bearings. The hanger bearings listed are the most commonly used. Non-cataloged hanger bearing sizes and shapes, including sizes larger then those listed, are available.

POBCO Ultra-D "U" Trough Liners

  • Pre-drilled with 45° beveled ends-slide together
  • Full coverage and custom sizes available
  • 4 ft. & 10 ft. lengths
  • White UHMW Standard Color

Ultra-D Trough Liner

Thickness = 3/16", 1/4", 3/8"
Other sizes available - Please Inquire

>

POBCO Part#

Screw Diameter

Thickness “T”

“A”

“B”Standard Coverage

“B”Full Coverage

Length

TLU0603 6” 3/16” 7” 4” 4-1/2” 4ft or 10ft
TLU0604 6” 1/4” 7” 4” 4-1/2” 4ft or 10ft
TLU0803 8” 3/16” 9” 3” 5” 4ft or 10ft
TLU0804 8” 1/4” 9” 3” 5” 4ft or 10ft
TLU0903 9” 3/16” 10” 4” 6-1/8” 4ft or 10ft
TLU0904 9” 1/4” 10” 4” 6-1/8” 4ft or 10ft
TLU0906 9” 3/8” 10” 4” 6-1/8” 4ft or 10ft
TLU1203 12” 3/16” 13" 5” 7-3/4” 4ft or 10ft
TLU1204 12” 1/4” 13" 5” 7-3/4” 4ft or 10ft
TLU1206 12” 3/8” 13" 5” 7-3/4” 4ft or 10ft
TLU1403 14” 3/16” 15” 3-1/4” 9-1/4” 4ft or 10ft
TLU1404 14” 1/4” 15” 3-1/4” 9-1/4” 4ft or 10ft
TLU1406 14” 3/8” 15” 3-1/4” 9-1/4” 4ft or 10ft
TLU1603 16” 3/16” 17” 6-1/2” 10-5/8” 4ft or 10ft
TLU1604 16” 1/4” 17” 6-1/2” 10-5/8” 4ft or 10ft
TLU1606 16” 3/8” 17” 6-1/2” 10-5/8” 4ft or 10ft
TLU1803 18” 3/16” 19” 5” 12-1/8” 4ft or 10ft
TLU1804 18” 1/4” 19” 5” 12-1/8” 4ft or 10ft
TLU1806 18” 3/8” 19” 5” 12-1/8” 4ft or 10ft
TLU2003 20” 3/16” 21” 3-1/2” 13-1/2” 4ft or 10ft
TLU2004 20” 1/4” 21” 3-1/2” 13-1/2” 4ft or 10ft
TLU2006 20” 3/8” 21” 3-1/2” 13-1/2” 4ft or 10ft
TLU2403 24” 3/16” 25” 4-1/2” 16-1/2” 4ft or 10ft
TLU2404 24” 1/4” 25” 4-1/2” 16-1/2” 4ft or 10ft
TLU2406 24” 3/8” 25” 4-1/2” 16-1/2” 4ft or 10ft
