POBCO AllwoodMount
and AllplasticMount Bearings
Available in a variety of POBCO Plastics including POBCO Ultra-D (UHMW), POBCO Plus (Food Grade Fluid Lube-Filled UHMW) and POBCO-B Wood Bearing Material.

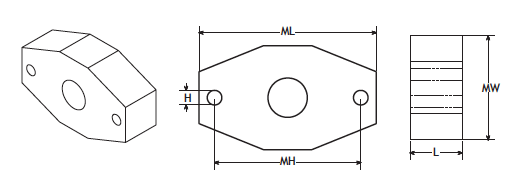

2-Bolt Flange Mount
Also see: TriMount 2-Bolt Side Flanges
Speed and Load information available,
please inquire.
2-Bolt Flange Mount |
||||||
| Part No.** | Shaft Size*** |
MH |
ML |
MW |
L |
H |
2FM*-48-08 |
1/2" |
3" |
3-7/8" |
2-1/8" |
1-1/4" |
7/16" |
2FM*-57-12 |
3/4" |
3-9/16" |
4-7/16" |
2-1/2" |
1-1/2" |
7/16" |
2FM*-62-16 |
1" |
3-7/8" |
4-15/16" |
2-3/4" |
1-1/2" |
7/16" |
2FM*-74-19 |
1-3/16" |
4-5/8" |
5-7/8" |
3-1/4" |
1-1/2" |
9/16" |
2FM*-82-20 |
1-1/4" |
5-1/8" |
6-1/8" |
3-5/8" |
1-3/4" |
9/16" |
2FM*-82-23 |
1-7/16" |
5-1/8" |
6-1/8" |
3-5/8" |
1-3/4" |
9/16" |
2FM*-90-24 |
1-1/2" |
5-5/8" |
6-13/16" |
4" |
2" |
9/16" |

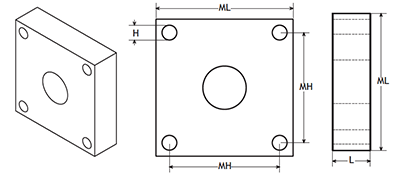

4-Bolt Flange Mount
Also see: TriMount 4-Bolt Side Flanges
Speed and Load information available,
please inquire.
4-Bolt Flange Mount |
|||||
Part No.** |
Shaft |
MH |
ML |
L |
H |
4FM*-34-08 |
1/2" |
2-1/2" |
3-3/8" |
1" |
7/16" |
4FM*-40-12 |
3/4" |
3-9/16" |
4-7/16" |
1-1/4" |
7/16" |
4FM*-44-16 |
1" |
2-3/4" |
3-3/4" |
1-1/4" |
7/16" |
4FM*-52-19 |
1-3/16" |
3-1/4" |
4-1/4" |
1-1/2" |
9/16" |
4FM*-58-20 |
1-1/4" |
3-5/8" |
4-3/4" |
1-1/2" |
9/16" |
4FM*-58-23 |
1-7/16" |
3-5/8" |
4-3/4" |
1-1/2" |
9/16" |
4FM*-64-24 |
1-1/2" |
4" |
5-1/8" |
1-3/4" |
9/16" |
4FM*-70-31 |
1-15/16" |
4-3/8" |
5-1/2" |
1-3/4" |
11/16" |
4FM*-82-32 |
2" |
5-1/8" |
6-3/8" |
1-3/4" |
11/16" |
4FM*-90-39 |
2-7/16" |
5-5/8" |
6-7/8" |
2" |
11/16" |

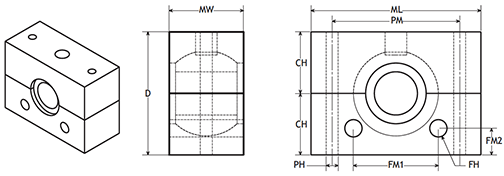

Self-Aligning Mount Mount
Designed to be used as either a pillow block or a flange mount. For two piece sphere, add suffix-TP to part number.
Self-Aligning Mount Mount |
||||||||||
| Part No.** | Shaft |
CH |
PM |
FM1 |
FM2 |
D |
ML |
MW |
PH |
FH |
MS*-19-08 |
1/2" |
1-3/16" |
2-3/8" |
1-3/8" |
7/16" |
2-3/8" |
3-3/8" |
1-1/4" |
5/16" |
7/16" |
MS*-19-10 |
5/8" |
1-3/16" |
2-3/8" |
1-3/8" |
7/16" |
2-3/8" |
3-3/8" |
1-1/4" |
5/16" |
7/16" |
MS*-19-11 |
11/16" |
1-3/16" |
2-3/8" |
1-3/8" |
7/16" |
2-3/8" |
3-3/8" |
1-1/4" |
5/16" |
7/16" |
MS*-21-12 |
3/4" |
1-5/16" |
2-1/2" |
1-1/2" |
1/2" |
2-5/8" |
3-1/2" |
1-3/8" |
1/4" |
3/8" |
MS*-23-14 |
7/8" |
1-7/16" |
3" |
2" |
5/8" |
2-7/8" |
4" |
1-3/4" |
1/4" |
3/8" |
MS*-23-15 |
15/16" |
1-7/16" |
3" |
2" |
5/8" |
2-7/8" |
4" |
1-3/4" |
1/4" |
3/8" |
MS*-23-16 |
1" |
1-7/16" |
3" |
2" |
5/8" |
2-7/8" |
4" |
1-3/4" |
1/4" |
3/8" |
MS*-27-18 |
1-1/8" |
1-11/16" |
3-3/8" |
2-14" |
5/8" |
3-3/8" |
4-5/8" |
1-15/16" |
3/8" |
1/2" |
MS*-27-19 |
1-13/16" |
1-11/16" |
3-3/8" |
2-1/4" |
5/8" |
3-3/8" |
4-5/8" |
1-15/16" |
3/8" |
1/2" |
MS*-30-20 |
1-1/4" |
1-7/8" |
3-3/4" |
2-5/8" |
3/4" |
3-3/4" |
5" |
2-5/16" |
3/8" |
1/2" |
MS*-30-21 |
1-5/16" |
1-7/8" |
3-3/4" |
2-5/8" |
3/4" |
3-3/4" |
5" |
2-5/16" |
3/8" |
1/2" |
MS*-30-22 |
1-3/8" |
1-7/8" |
3-3/4" |
2-5/8" |
3/4" |
3-3/4" |
5" |
2-5/16" |
3/8" |
1/2" |
MS*-30-23 |
1-7/16" |
1-7/8" |
3-3/4" |
2-5/8" |
3/4" |
3-3/4" |
5" |
2-5/16" |
3/8" |
1/2" |
MS*-32-24 |
1-1/2" |
2" |
4" |
2-7/8" |
3/4" |
4" |
5-1/4" |
2-1/2" |
3/8" |
1/2" |
MS*-34-26 |
1-5/8" |
2-1/8" |
4-3/8" |
3-1/4" |
3/4" |
4-1/4" |
5-5/8" |
2-7/8" |
3/8" |
1/2" |
MS*-34-27 |
1-11/16" |
2-1/8" |
4-3/8" |
3-1/4" |
3/4" |
4-1/4" |
5-5/8" |
2-5/8" |
3/8" |
1/2" |
MS*-34-28 |
1-3/4" |
2-1/8" |
4-3/8" |
3-1/4" |
3/4" |
4-1/4" |
5-5/8" |
2-5/8" |
3/8" |
1/2" |
MS*-36-31 |
1-15/16" |
2-1/4" |
5-1/8" |
3-5/8" |
3/4" |
4-1/2" |
6-5/8" |
3-1/8" |
1/2" |
1/2" |
MS*-40-32 |
2" |
2-1/2" |
5-1/2" |
4" |
3/4" |
5" |
7" |
3-7/16" |
1/2" |
1/2" |
MS*-40-34 |
2-1/8" |
2-1/2" |
5-1/2" |
4" |
3/4" |
5" |
7" |
3-7/16" |
1/2" |
1/2" |
MS*-40-35 |
2-3/16" |
2-1/2" |
5-1/2" |
4" |
3/4" |
5" |
7" |
3-7/16" |
1/2" |
1/2" |
These bearings are designed to interchange with most conventional mounts. |
||||||||||
* Please Specify Bearing Material
** See Properties of POBCO Materials to complete part number,
for two piece sphere, add suffix -TP before completing part number.
*** Any Shaft Size Is Available Up To The Maximum Listed Size For Each Amount
Materials must be specified - Specify Loads, Speeds and Operting Conditions
